FK Rod Ends

3/16 in. Bore x 10-32 Thread LH Male Aluminum FK Rod End

(No reviews yet) Write a Review
SKU:
FKB-ALJML3
  • FK Rod Ends 3/16 in. Bore x 10-32 Thread LH Male Aluminum FK Rod End

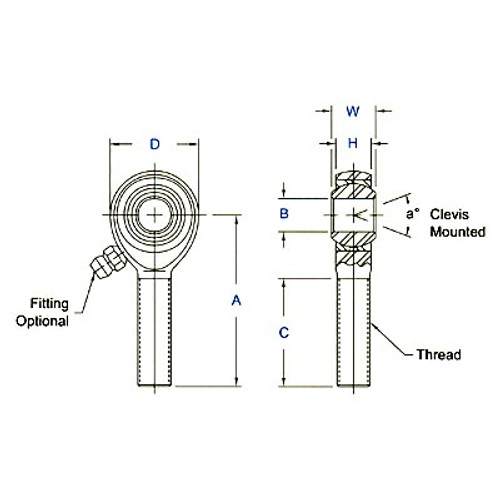

  • FK Rod End Diagram
$10.99

Description

ALJML3, Male Rod End

Body - Aluminum, 7075-T6, hard anodized red
Ball - 52100 steel, heat treated, hard chrome plated
Race - Steel alloy, heat treated, zinc plated, chromate treated

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .1900 in.
• W - Ball Width: .312 in.
• T - Head Width: .250 in.
• A - Base to Center: 1.250 in.
• D - Head Diameter: .625 in.
• Ball Diameter: .437 in.
• C - Thread Length: .750 in.
• Thread Size: 10-32
• a° Misalignment Angle: 13 degree
• Ultimate Radical Static Load Capacity: 1,360 lbs
• Approximate Bearing Weight: .022 lbs

View AllClose

Additional Information

Size:
3/16 in. Bore
Size:
10-32 Thread
Style:
LH
Style:
Male
Style:
Rod End
Material:
Aluminum
