FK Rod Ends

3/8 in. Bore x 3/8-24 Thread LH Male 4130 FK Rod End

(No reviews yet) Write a Review
SKU:
FKB-JMXL6
  • FK Rod Ends 3/8 in. Bore x 3/8-24 Thread LH Male 4130 FK Rod End

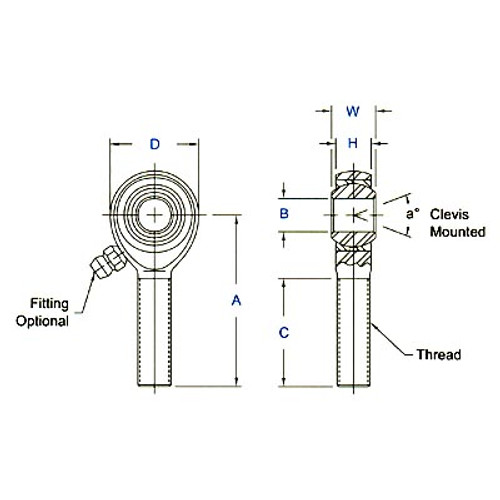

  • FK Rod Ends Diagram
$15.99

Description

JMXL6, Male Rod End

Body - Steel alloy, heat treated, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Race - Steel alloy, heat treated, zinc plated, chromate treated

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .3750 in.
• W - Ball Width: .500 in.
• T - Head Width: .406 in.
• A - Base to Center: 1.938 in.
• D - Head Diameter: 1.000 in.
• Ball Diameter: .719 in.
• C - Thread Length: 1.250 in.
• Thread Size: 3/8-24
• a° Misalignment Angle: 12 degree
• Ultimate Radical Static Load Capacity: 9,550 lbs
• Approximate Bearing Weight: .110 lbs

View AllClose

Additional Information

Size:
3/8 in. Bore
Size:
3/8-24 Thread
Style:
LH
Style:
Male
Style:
Rod End
Material:
4130
View AllClose
