1/2" Bore x 3/4"-16 Thread RH Male 4130 Extra Heavy Duty Rod End, PTFE Lined with Mil Spec Liner

(No reviews yet) Write a Review
SKU:
AUR-RXAM-8T-3
  • Aurora Bearing 1/2" x 3/4"-16 RH Male 4130 Extra Heavy Duty Rod End, PTFE Lined with Mil Spec Liner
  • Aurora Bearing 1/2" x 3/4"-16 RH Male 4130 Extra Heavy Duty Rod End, PTFE Lined with Mil Spec Liner
$75.99

Description

RXAM-8T-3, Male Rod End, High Strength Alloy - PTFE Lined

Body - Alloy steel, heat treated, nickel or chrome plated.
Race - Alloy steel, heat treated protective coated for corrosion resistance, PTFE lined with Mil Spec liner
Ball - Alloy steel, heat treated, hard chrome plated.

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male

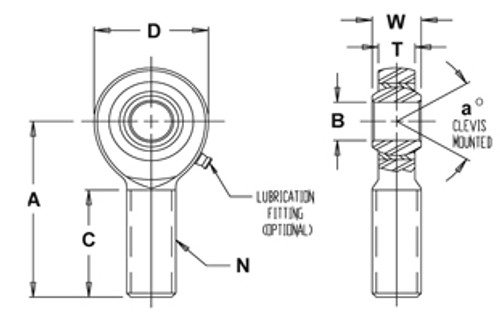

• B - Ball Bore: .5000"
• W - Ball Width: .750"
• H - Head Width: .562"
• A - Base to Center: 2.875"
• D - Head Diameter: 1.750"
• Ball Diameter: 1.125"
• C- Thread Length: 1.687"
• Thread Size: 3/4"-16
• Thread Class: UNJF-3A
• a° Misalignment Angle Clevis Mounted: 13°
• Ultimate Radial Static Load Capacity: 39,674 lb
• Approximate Bearing Weight: 0.60 lb
