1/2" Bore x 5/8"-18 Thread RH Male 4340 Rod End, PTFE Lined

SKU:
AUR-HXAM-8T
$73.99
Quantity:

Product Description

HXAM-8T, High Misalignment Male Rod End

Body - 4340 steel, heat treated, protective coated for corrosion resistance.
Race - 4130 steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
PTFE liner - (AT 3200) Permanently bonded to race inside diameter.

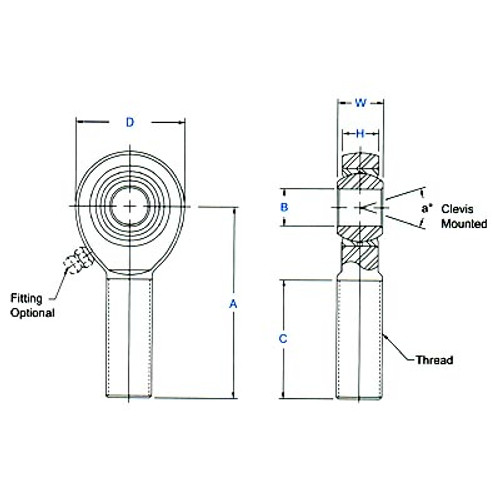

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .5000"
• W - Ball Width: .937"
• H - Head Width: .411"
• A - Base to Center: 2.625"
• D - Head Diameter: 1.525"
• Ball Diameter: 1.000"
• C - Thread Length: 1.562"
• Thread Size: 5/8"-18
• Thread Class: UNJF-3A
• a° Misalignment Angle: 19°
• Ultimate Radial Static Load Capacity: 23,720 lbs
• O - Ball Shoulder Diameter: .730"
• Approximate Bearing Weight: 0.390 lb
