  • Aurora Bearing 1/4" Bore x 1/4"-28 Thread LH Female Mild Steel Rod End
  • Aurora Bearing 1/4" Bore x 1/4"-28 Thread LH Female Mild Steel Rod End

1/4" Bore x 1/4"-28 Thread LH Female Mild Steel Rod End

SKU:
AUR-CG-4
$5.99
Quantity:

Product Description

CG-4, Female Rod End, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Left-hand threaded units have an identification groove near end of shank.

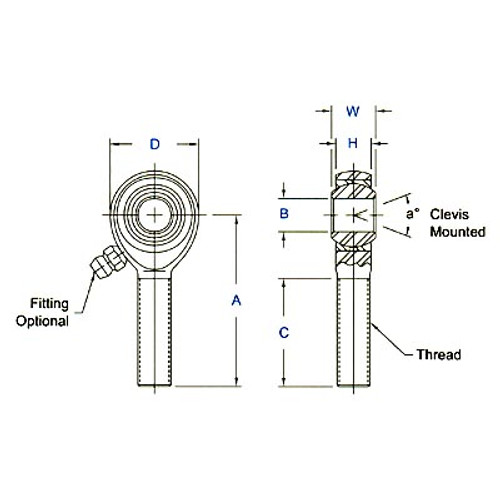

Specifications
• Thread Type: Left Hand
• Thread Configuration: Female
• B - Ball Bore: .2500"
• W - Ball Width: .375"
• H - Head Width: .250"
• A - Base to Center: 1.312"
• D - Head Diameter: .750"
• K - Shank Diameter: .469"
• J - Wrench Flat Width: .375"
• Ball Diameter: .500"
• C - Thread Length: .687"
• Thread Size: 1/4"-28
• Thread Class: UNF-2B-LH
• a° Misalignment Angle: 27°
• Ultimate Radial Static Load Capacity: 3,208 lbs
• Approximate Bearing Weight: 0.050 lbs
