1/4" Bore x 1/4"-28 Thread RH Male Mild Steel FK Rod End

SKU:
FKB-CM4
$2.97
Quantity:

Product Description

CM4, Male Rod End

Body - Low carbon steel, zince plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated

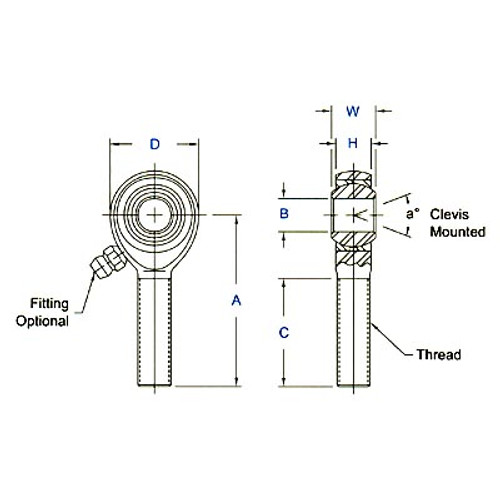

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .250"
• W - Ball Width: .375"
• T - Head Width: .250"
• A - Base to Center: 1.562"
• D - Head Diameter: .750"
• Ball Diameter: .500"
• C - Thread Length: 1.000"
• Thread Size: 1/4"-28
• a° Misalignment Angle: 27°
• Ultimate Radical Static Load Capacity: 2,225 lbs
• Approximate Bearing Weight: .040 lbs
