1/4" Bore x 1/4"-28 Thread RH Male Mild Steel Rod End

(No reviews yet) Write a Review
SKU:
AUR-CM-4
  • Aurora Bearing 1/4" Bore x 1/4"-28 Thread RH Male Mild Steel Rod End
  • Aurora Bearing 1/4" Bore x 1/4"-28 Thread RH Male Mild Steel Rod End
$5.49

Description

CM-4, Male Rod End, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

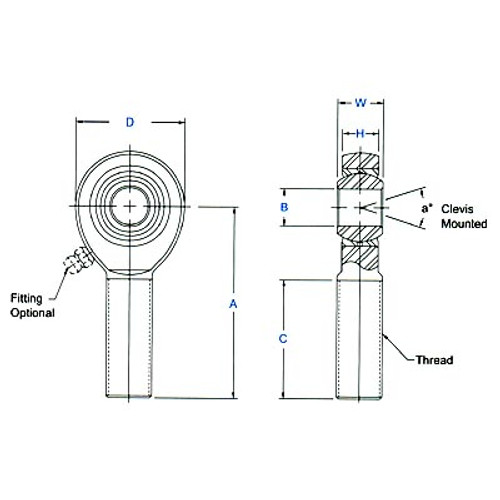

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .2500"
• W - Ball Width: .375"
• H - Head Width: .250"
• A - Base to Center: 1.562"
• D - Head Diameter: .750"
• Ball Diameter: .500"
• C - Thread Length: 1.000"
• Thread Size: 1/4"-28
• Thread Class: UNF-3A
• a° Misalignment Angle: 27°
• Ultimate Radical Static Load Capacity: 2,212 lbs
• Approximate Bearing Weight: .040 lbs
