3/16" Bore x 10-32 Thread LH Male Mild Steel Rod End

(No reviews yet) Write a Review
SKU:
AUR-CB-3
  • Aurora Bearing 3/16" Bore x 10-32 Thread LH Male Mild Steel Rod End
  • Aurora Bearing 3/16" Bore x 10-32 Thread LH Male Mild Steel Rod End
$4.99

Description

CB-3, Male Rod End, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

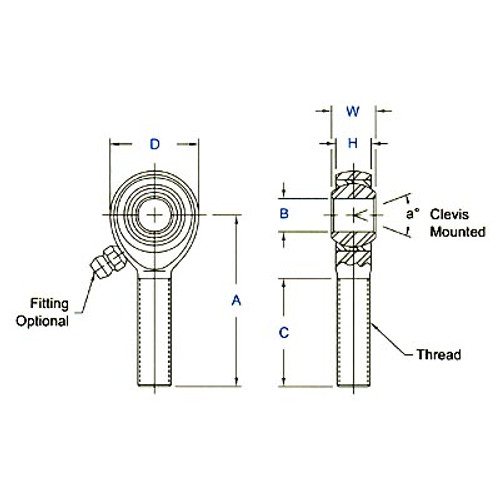

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .1900"
• W - Ball Width: .312"
• H - Head Width: .234"
• A - Base to Center: 1.250"
• D - Head Diameter: .625"
• Ball Diameter: .437"
• C - Thread Length: .750"
• Thread Size: 10-32
• Thread Class: UNF-3A-LH
• a° Misalignment Angle: 20°
• Ultimate Radical Static Load Capacity: 1,204 lbs
• Approximate Bearing Weight: .030 lbs
