3/8" Bore x 7/16"-20 Thread RH Male 4340 FK Rod End

SKU:
FKB-HRSMX6T
$32.97
Quantity:

Product Description

HRSMX6T, Male Rod End

Body - 4340 steel, heat treated, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Race - Steel alloy, zinc plated, chromate treated

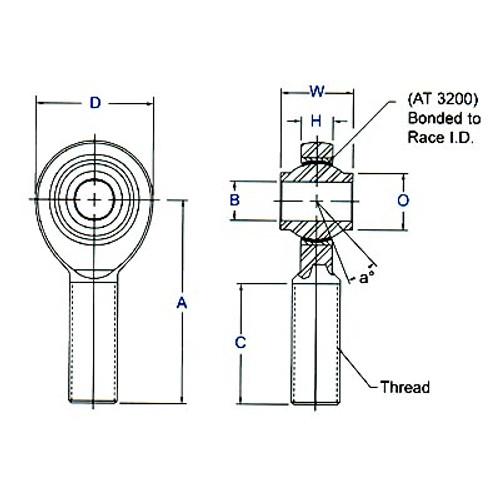

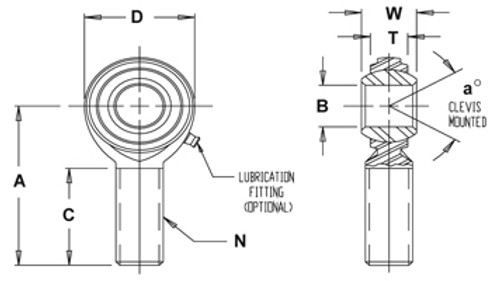

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .3750"
• W - Ball Width: .813"
• T - Head Width: .355"
• A - Base to Center: 2.125"
• D - Head Diameter: 1.150"
• Ball Diameter: .781"
• C - Thread Length: 1.281"
• O - Ball Bore Diameter: .512"
• Thread Size: 7/16"-20
• a° Misalignment Angle: 22°
• Ultimate Radical Static Load Capacity: 11,789 lbs
• Approximate Bearing Weight: .150 lbs
