5/16" Bore x 5/16"-24 Thread RH Male 4130 Rod End

(No reviews yet) Write a Review
SKU:
AUR-AM-5
  • Aurora Bearing 5/16" Bore x 5/16"-24 Thread RH Male 4130 Rod End
  • Aurora Bearing 5/16" Bore x 5/16"-24 Thread RH Male 4130 Rod End
$18.99

Description

AM-5 Male Rod End, High Strength Alloy - Precision

Body - Alloy Steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

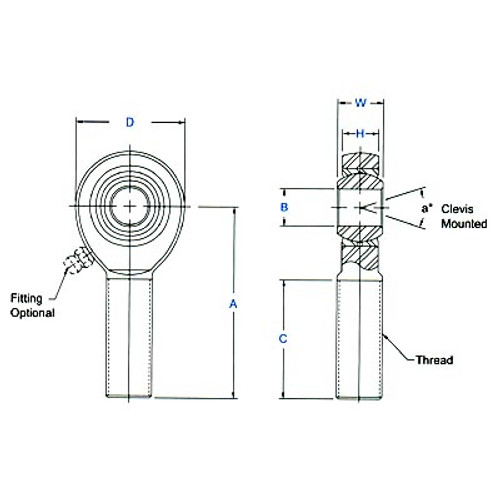

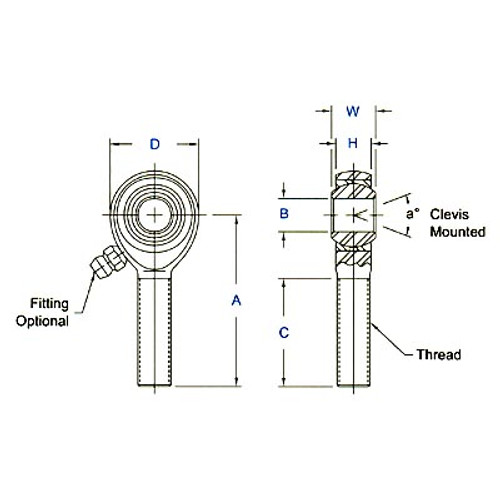

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .3125"
• W - Ball Width: .437"
• H - Head Width: .344"
• A - Base to Center: 1.875"
• D - Head Diameter: .875"
• Ball Diameter: .625"
• C - Thread Length: 1.250"
• Thread Size: 5/16"-24
• Thread Class: UNF-3A
• a° Misalignment Angle: 14°
• Ultimate Radical Static Load Capacity: 7,639 lbs
• Approximate Bearing Weight: .07 lbs
