  • Aurora Bearing 5/16" Bore x 5/16"-24 Thread RH Male Mild Steel Rod End
  • Image 2

5/16" Bore x 5/16"-24 Thread RH Male Mild Steel Rod End

SKU:
AUR-CM-5
$5.99
Quantity:

Product Description

CM-5, Male Rod End, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

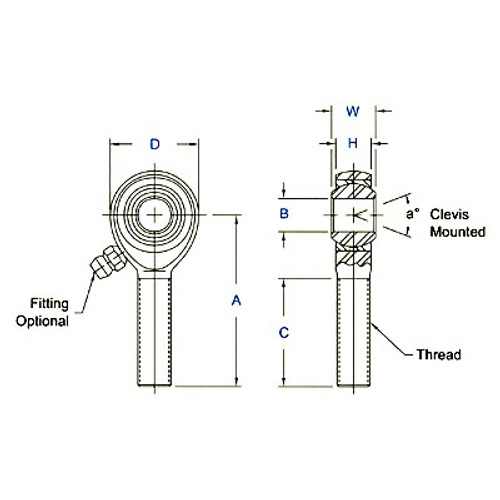

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .3125"
• W - Ball Width: .437"
• H - Head Width: .312"
• A - Base to Center: 1.875"
• D - Head Diameter: .875"
• Ball Diameter: .625"
• C - Thread Length: 1.250"
• Thread Size: 5/16"-24
• Thread Class: UNF-3A
• a° Misalignment Angle: 22°
• Ultimate Radical Static Load Capacity: 3,577 lbs
• Approximate Bearing Weight: .07 lbs
