5/8" Bore x 5/8"-18 Thread LH Male Mild Steel Rod End

(No reviews yet) Write a Review
SKU:
AUR-CB-10
  • Aurora Bearing 5/8" Bore x 5/8"-18 Thread LH Male Mild Steel Rod End
  • Aurora Bearing 5/8" Bore x 5/8"-18 Thread LH Male Mild Steel Rod End
$14.99

Description

CB-10, Male Rod End, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

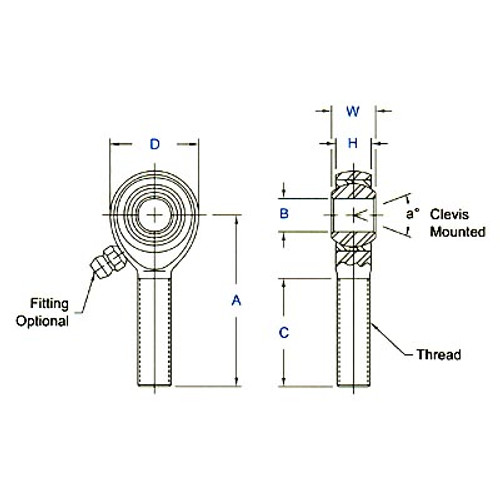

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .6250"
• W - Ball Width: .750"
• H - Head Width: .484"
• A - Base to Center: 2.625"
• D - Head Diameter: 1.500"
• Ball Diameter: 1.125"
• C - Thread Length: 1.625"
• Thread Size: 5/8"-18
• Thread Class: UNF-3A-LH
• a° Misalignment Angle: 26°
• Ultimate Radical Static Load Capacity: 9,713 lbs
• Approximate Bearing Weight: .360 lbs
