Quarter-Max

Quarter-Max 9 in. Ford Fabricated Bare Housing, Mild Steel, 60 in. Wide

(1 review) Write a Review
SKU:
RJ-304104-1

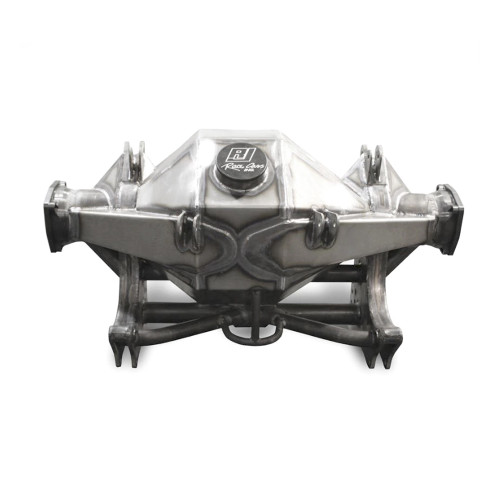

  • Quarter-Max 9 in. Ford Fabricated Bare Housing, Mild Steel, 60 in. Wide

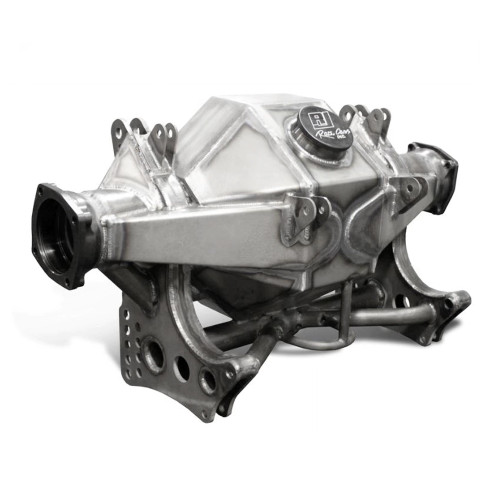

  • Quarter-Max 9 in. Ford Fabricated Bare Housing, Mild Steel, 60 in. Wide - Bottom view
$666.99

Description

Quarter-Max's 9 in. Ford fabricated housings are available in widths of 45 in. or 60 in. and feature a 1/4 in. thick face plate drilled on a CNC mill to provide accurate stud locations. The housing covers are cut on our in-house water jet from a single piece and formed on a CNC brake. All Quarter-Max housings include face plate studs, fill cap, and drain plug installed. The vent is included but not installed. Banjo width is 15-1/8 in. Minimal 4-link width is 18-1/4 in. for centered pinion applications. Housing ends are available separately.

Available in mild steel or 4130:
Mild steel available with 3 in. axle tubes only
4130 available with 3-1/2 in. axle tubes only

Specifications:
• Width: 60 in.
• Material: mild steel
• Axle Tube Size: 3 in.

Custom Quarter-Max Fabricated Housing are available. Please call for your application.

This item will have a discounted oversize fee of $100.00 when shipped via ground delivery to the contiguous 48 United States.

View AllClose

Additional Information

Style:
9 in. Ford
Style:
Fabricated Bare Housing
Width:
60 in.
Size:
3 in. Axle Tube
Material:
Mild Steel
View AllClose

1 Review

  • 4

    Fab 9 housing

    Posted by Nathan on Apr 16th 2018

    The only gripe i have and its not a huge one is i wish the faceplate was offset so the housing looked center under the car but I realize that is a feature of a more expensive rear end so you get what you pay for finish is beautiful nice welds
