300M Floater Axle, 40 Spline, Gundrilled, 20" or Less

Application
Strange Drag Race Floater Kits

Description
Drag Race floater axle – 20″ or less
Machined from gun drilled 300M material
Gun drilling removes approximately 1 pound per foot

300M
A modified 4340 steel with silicone, vanadium, higher carbon & molybdenum content
This is a premium material that is suitable for the most severe applications

It provides an additional 18% increase in impact and torsional strength over Hy-Tuf
The preferable choice in heavy cars with 3,000 or more horsepower
Typical applications include Radial vs. The World vehicles

Floater Axles Are Sold As Each

Features
• 300M material
• .875″ ID hole bored entire length of axle
• Hobbed 40 spline with 45° pressure angle on both ends
• Involuted splines provide full surface contact area
• Major machining performed before heat treat
• Ensures consistent hardness & ductility
• Thru hardening maximizes material's torsional strength
• Shaft finished machined after heat treat to eliminate runout
• Spirolox® prevents axle from shifting
• Black oxide finish to resist corrosion
• Material made in the USA
• Designed and machined by Strange Engineering

Other Gun Drilled Floater Axles
300M
20 1/8″ to 24″……… A2040M24
24 1/8″ to 28″……… A2040M28
28 1/8″ to 32″……… A2040M32
32 1/8″ to 36″……… A2040M36

Hy-Tuf
24″ or less……………A2040H24
24 1/8″ to 28″……… A2040H28
28 1/8″ to 32″……… A2040H32
32 1/8″ to 36″……… A2040H36

Solid Floater Axles
300M
20″ or less…………….. A2140M
20 1/8″ to 24″……… A2140M24
24 1/8″ to 28″……… A2140M28
28 1/8″ to 32″……… A2140M32
32 1/8″ to 36″……… A2140M36

Hy-Tuf
24″ or less………….. A2140H24
24 1/8″ to 28″……… A2140H28
28 1/8″ to 32″……… A2140H32
32 1/8″ to 36″……… A2140H36

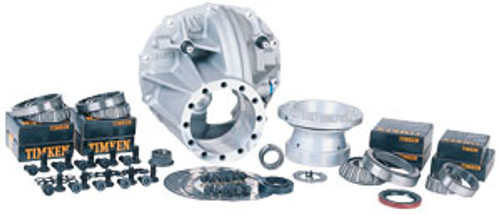

Floater Kits
Carbon
4 3/4″ bolt circle….. F22064WC
5″ bolt circle………… F22065WC
5 1/2″ bolt circle……. F2206WC

Steel
4 3/4″ bolt circle…….. F22064
5″ bolt circle…………… F22065
5 1/2″ bolt circle……… F2206

Pro Touring……………. F5010
