FK Rod Ends

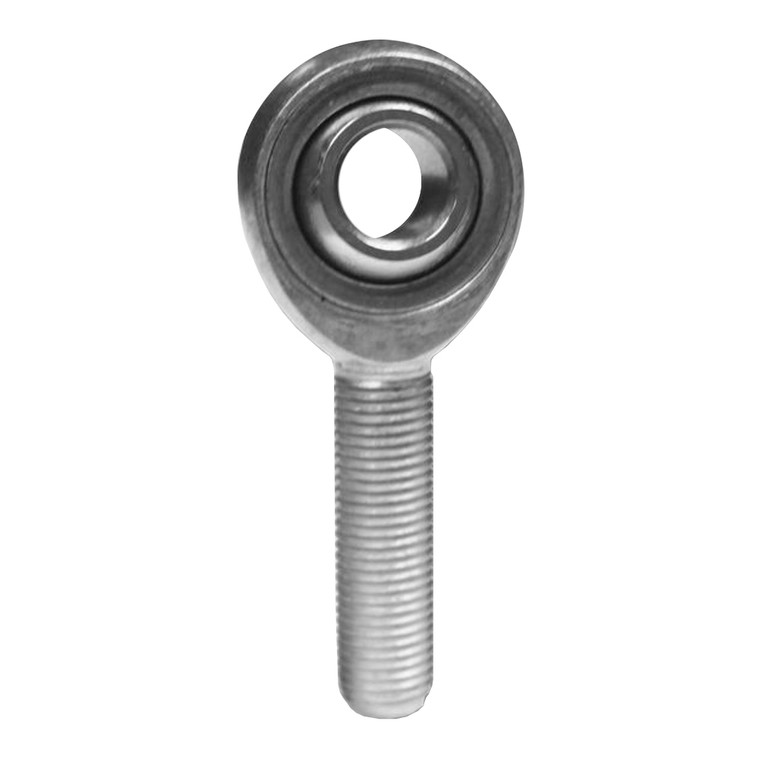

1/2 in. Bore x 1/2-20 Thread LH Male 4130 FK Rod End
(No reviews yet)
Write a Review
- SKU:
- FKB-JMXL8
Description
JMXL8, Male Rod End
Body - Steel alloy, heat treated, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Race - Steel alloy, heat treated, zinc plated, chromate treated
Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .5000 in.
• W - Ball Width: .625 in.
• T - Head Width: .500 in.
• A - Base to Center: 2.438 in.
• D - Head Diameter: 1.312 in.
• Ball Diameter: .937 in.
• C - Thread Length: 1.500 in.
• Thread Size: 1/2-20
• a° Misalignment Angle: 12 degree
• Ultimate Radical Static Load Capacity: 16,242 lbs
• Approximate Bearing Weight: .250 lbs
Additional Information
Size: |
1/2 in. Bore |
Size: |
1/2-20 Thread |
Style: |
LH |
Style: |
Male |
Style: |
Rod End |
Material: |
4130 |
