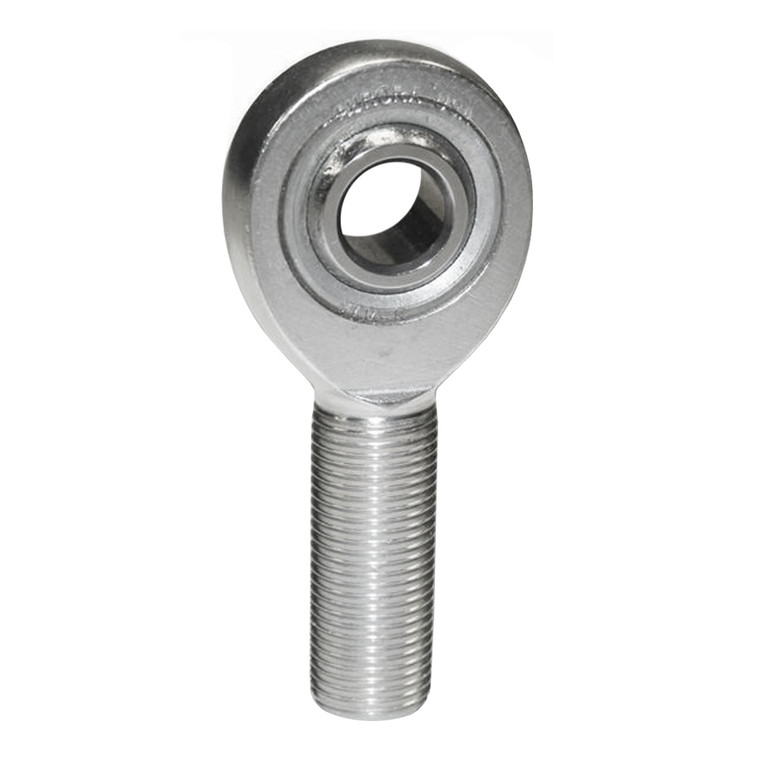

1/2 in. Bore x 3/4-16 Thread RH Male 4130 Rod End, PTFE Lined

XAM-8T-2, Male Rod End, High Strength Alloy - Heavy Duty Shank

Body - Alloy steel, heat treated, protective coated for corrosion resistance.
Race - Carbon steel, protective coated for corrosion resistance
Ball - Alloy steel, heat treated, hard chrome plated.
PTFE liner - (AT 3200) Permanently bonded to race inside diameter.

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .5000 in.
• W - Ball Width: .750 in.
• H - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• Thread Class: UNF-3A
• a Misalignment Angle Clevis Mounted: 13 degree
• Ultimate Radical Static Load Capacity: 40,572 lb
• Approximate Bearing Weight: 0.60 lb
