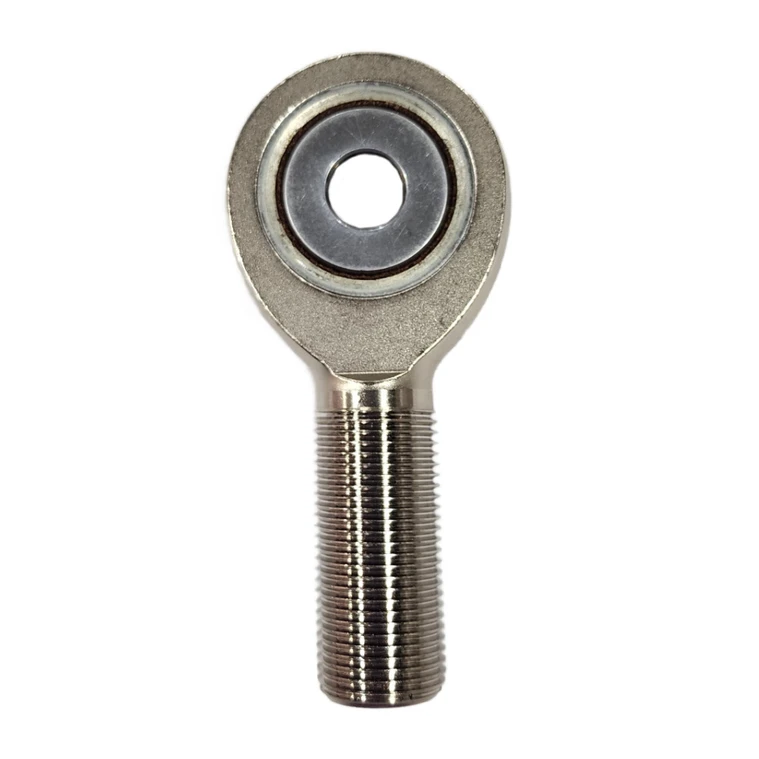

1/2 in. Bore x 7/8-14 Thread RH Male 4130 Extra Heavy Duty Rod End, PTFE Liner

1/2 in. Bore x 7/8-14 Thread RH Male 4130 Extra Heavy Duty Rod End, PTFE Liner

RXAM-8T-4, Male Rod End, High Strength Alloy - PTFE Liner

Body - Alloy steel, heat treated, protective coated for corrosion resistance
Race - Alloy steel, heat treated protective coated for corrosion resistance on ends
Ball - Alloy steel, heat treated, hard chrome plated
PTFE liner - (at 3200) Permanently bonded to race inside diameter

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .5000 in.
• W - Ball Width: .750 in.
• H - Head Width: .687 in.
• A - Base to Center: 3.375 in.
• D - Head Diameter: 2.000 in.
• Ball Diameter: 1.312 in.
• C - Thread Length: 1.875 in.
• Thread Size: 7/8-14
• Thread Class: UNJF-3A
• a Misalignment Angle Clevis Mounted: 4 degree
• Ultimate Radial Static Load Capacity: 55,692 lbs.
• Approximate Bearing Weight: 0.96 lbs.
