FK Rod Ends

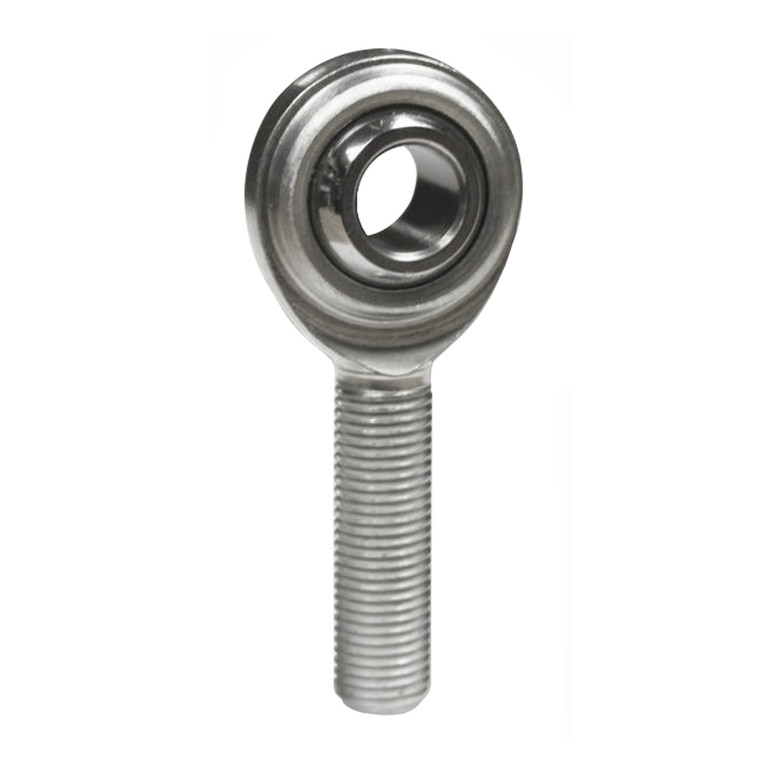

1/4 in. Bore x 1/4-28 Thread RH Male Mild Steel FK Rod End

(No reviews yet) Write a Review
SKU:
FKB-CM4
  • FK Rod Ends 1/4 in. Bore x 1/4-28 Thread RH Male Mild Steel FK Rod End

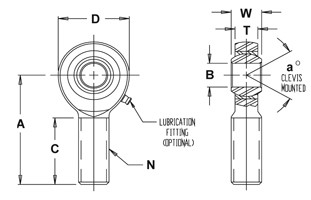

  • FK Rod End Diagram
$3.49

Description

CM4, Male Rod End

Body - Low carbon steel, zince plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .250 in.
• W - Ball Width: .375 in.
• T - Head Width: .250 in.
• A - Base to Center: 1.562 in.
• D - Head Diameter: .750 in.
• Ball Diameter: .500 in.
• C - Thread Length: 1.000 in.
• Thread Size: 1/4-28
• a° Misalignment Angle: 27 degree
• Ultimate Radical Static Load Capacity: 2,225 lbs
• Approximate Bearing Weight: .040 lbs

View AllClose

Additional Information

Size:
1/4 in. Bore
Size:
1/4-28 Thread
Style:
RH
Style:
Male
Style:
Rod End
Material:
Mild Steel
