Description

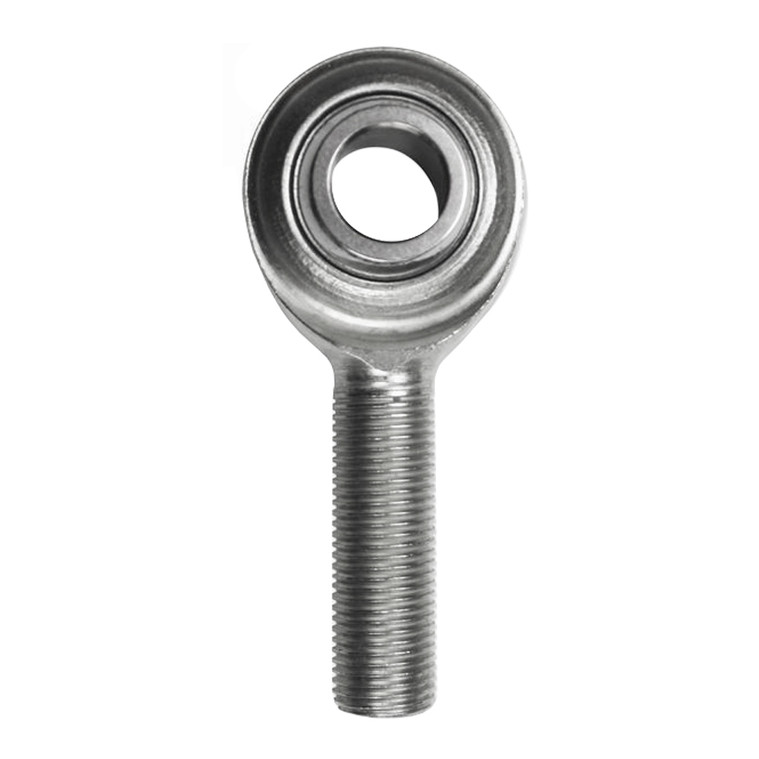

CM-4, Male Rod End, General Purpose - Economy
Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male

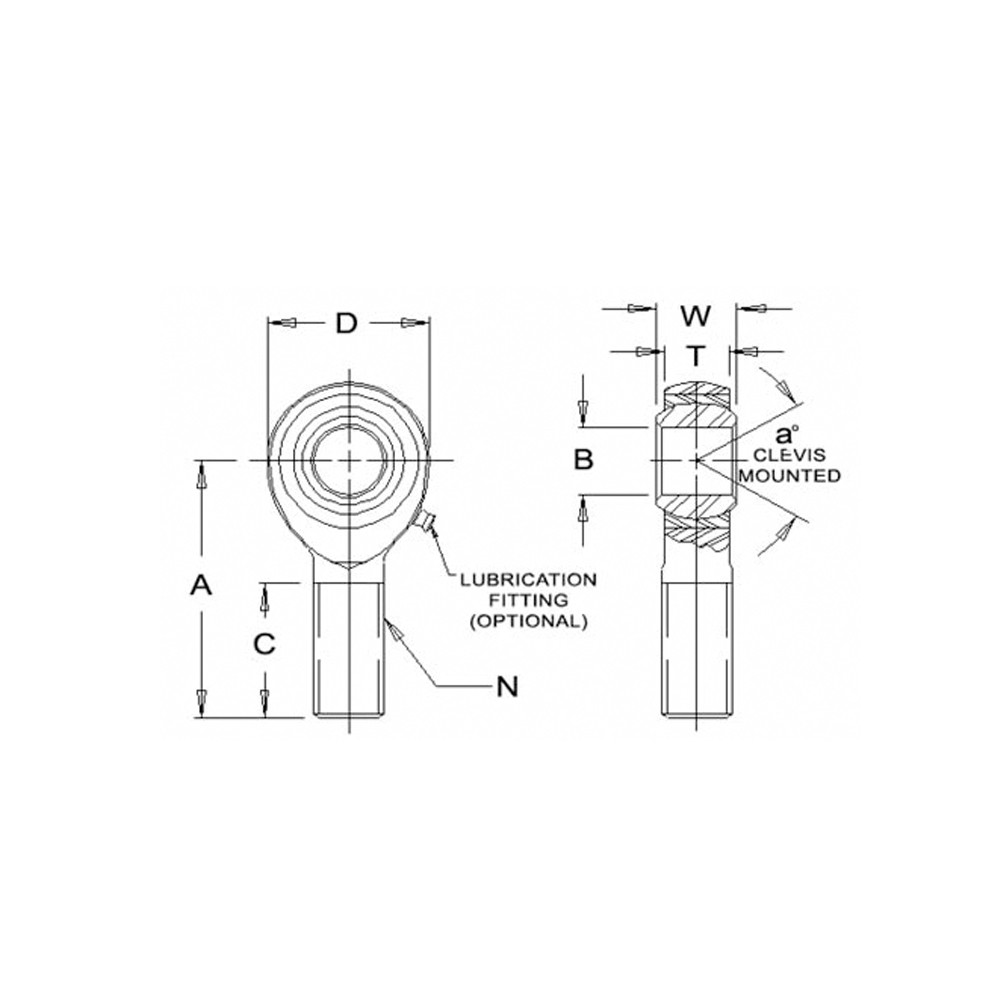

• B - Ball Bore: .2500 in.
• W - Ball Width: .375 in.
• H - Head Width: .250 in.
• A - Base to Center: 1.562 in.
• D - Head Diameter: .750 in.
• Ball Diameter: .500 in.
• C - Thread Length: 1.000 in.
• Thread Size: 1/4-28
• Thread Class: UNF-3A
• a Misalignment Angle: 27 degree
• Ultimate Radical Static Load Capacity: 2,212 lbs
• Approximate Bearing Weight: .040 lbs
Additional Information
Size: |
1/4 in. Bore |
Size: |
1/4-28 Thread |
Style: |
RH |
Style: |
Male |
Style: |
Rod End |
Material: |
Mild Steel |
