10-32 Thread RH Female Mild Steel Rod End with Stud

(No reviews yet) Write a Review
SKU:
AUR-CW-3S

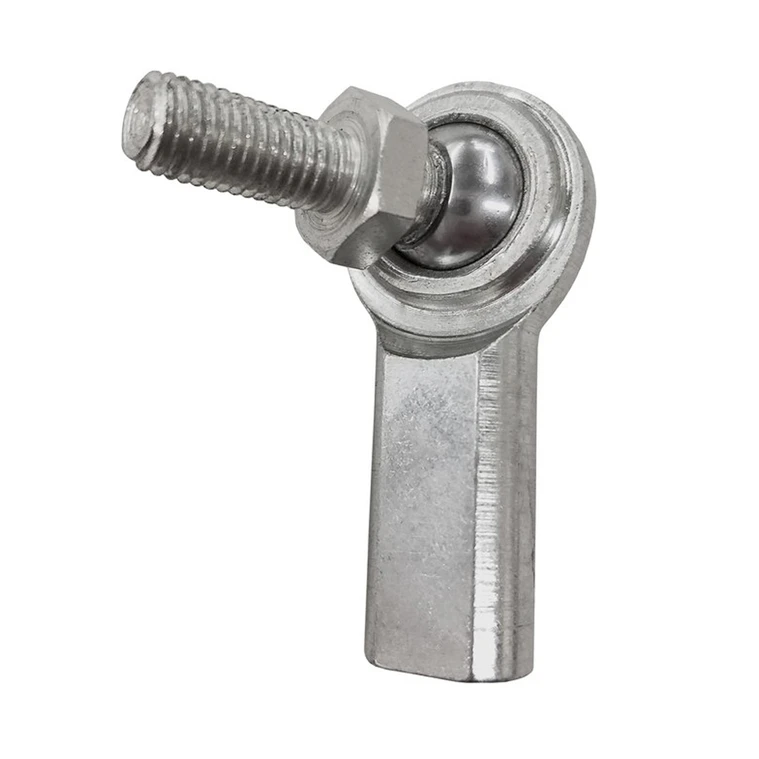

  • Aurora Bearing 10-32 Thread RH Female Mild Steel Rod End with Stud
  • Aurora Bearing 10-32 Thread RH Female Mild Steel Rod End with Stud
$7.99

Description

CW-3S, Female Rod End with Stud, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Stud - Low carbon steel, protective coated for corrosion resistance. Right hand thread standard.

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Female
• H - Head Width: .234"
• A - Base to Center: 1.062"
• D - Head Diameter: .625"
• K - Shank Diameter: .406"
• J - Wrench Flat Width: .312"
• Ball Diameter: .437"
• C - Thread Length: .500"
• L - Center to End of Stud: 1.000"
• N - Stud Shank Length: .500"
• M - Stud Thread Length: .437"
• Thread Size: 10-32
• Thread Class: UNF-2B
• Thread Class Stud: UNF-2A
• Hex Stud: .312"
• a° Misalignment Angle: 45°
• Ultimate Radial Static Load Capacity: 240 lbs
• Approximate Bearing Weight: 0.050 lb
