FK Rod Ends

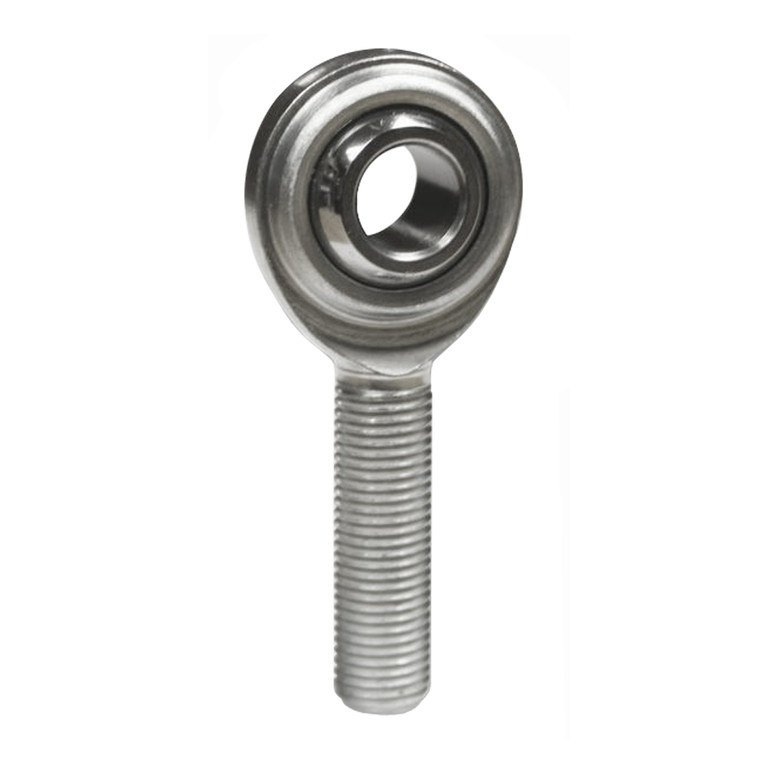

3/16 in. Bore x 10-32 Thread LH Male Mild Steel FK Rod End
(No reviews yet)
Write a Review
- SKU:
- FKB-CML3
Description
CML3, Male Rod End
Body - Low carbon steel, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .1900 in.
• W - Ball Width: .312 in.
• T - Head Width: .234 in.
• A - Base to Center: 1.250 in.
• D - Head Diameter: .625 in.
• Ball Diameter: .437 in.
• C - Thread Length: .750 in.
• Thread Size: 10-32
• a° Misalignment Angle: 20 degree
• Ultimate Radical Static Load Capacity: 1,210 lbs
• Approximate Bearing Weight: .03 lbs
Additional Information
Size: |
3/16 in. Bore |
Size: |
10-32 Thread |
Style: |
LH |
Style: |
Male |
Style: |
Rod End |
Material: |
Mild Steel |
