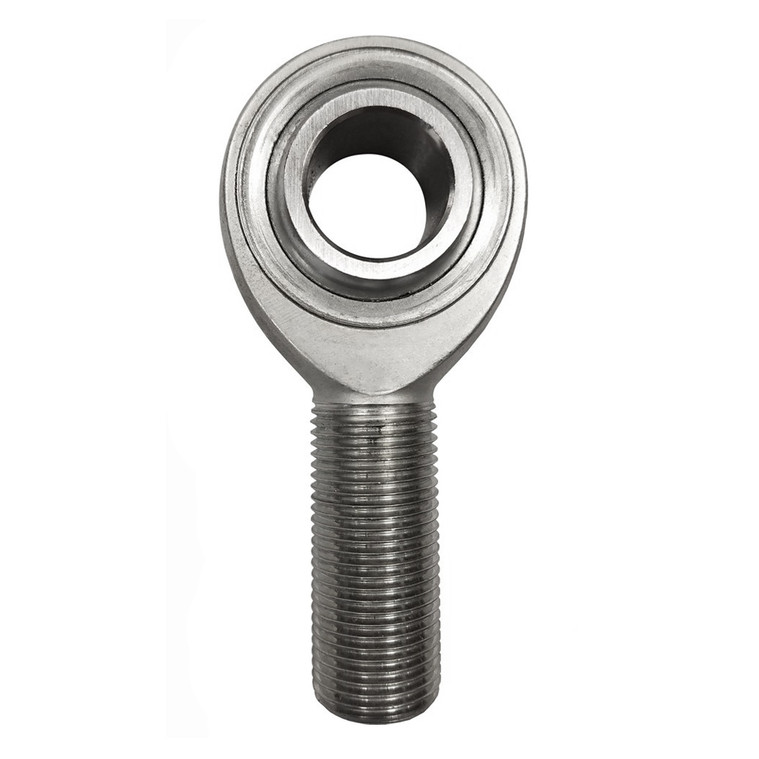

3/4 in. Bore x 3/4-16 Thread RH Male 4130 Rod End

AM-12 Male Rod End, High Strength Alloy - Precision

Body - Alloy Steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .7500 in.
• W - Ball Width: .875 in.
• H - Head Width: .687 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.312 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• Thread Class: UNF-3A
• a Misalignment Angle: 14 degree
• Ultimate Radical Static Load Capacity: 28,081 lbs
• Approximate Bearing Weight: .60 lbs
