Description

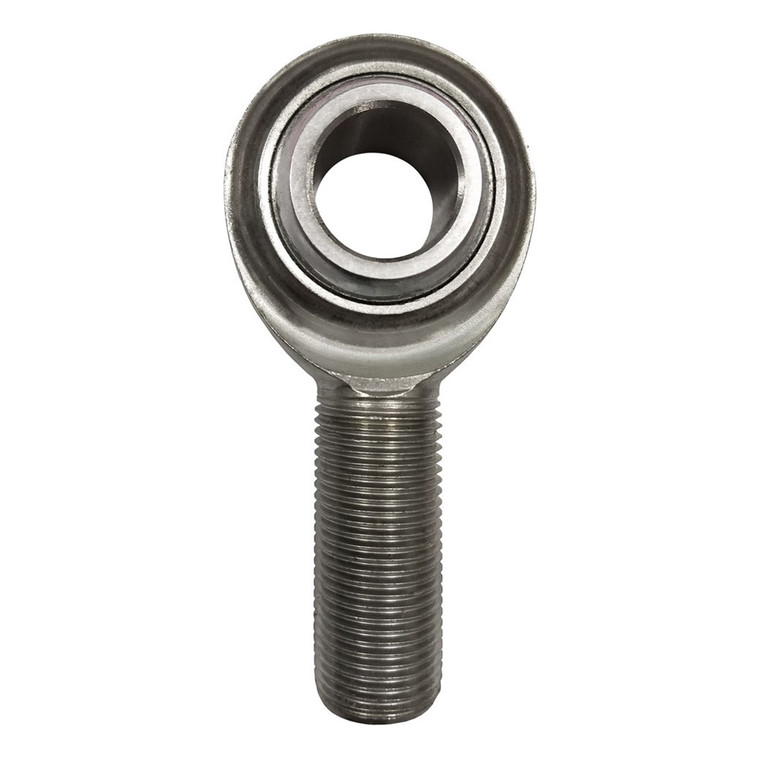

CM-12, Male Rod End, General Purpose - Economy
Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .7500 in.
• W - Ball Width: .875 in.
• H - Head Width: .593 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.312 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• Thread Class: UNF-3A
• a Misalignment Angle: 24 degree
• Ultimate Radical Static Load Capacity: 14,207 lbs
• Approximate Bearing Weight: .570 lbs
Additional Information
Size: |
3/4 in. Bore |
Size: |
3/4-16 Thread |
Style: |
RH |
Style: |
Male |
Style: |
Rod End |
Material: |
Mild Steel |
