Description
AB-6, Male Rod End, High Strength Alloy - Precision
Body - Alloy Steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male

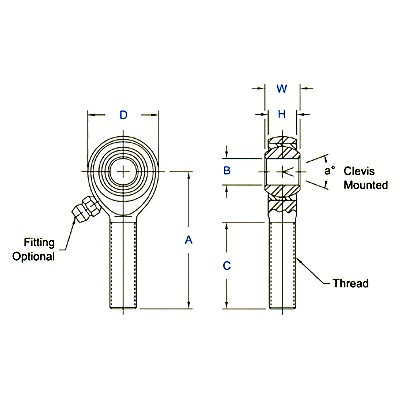

• B - Ball Bore: .3750 in.
• W - Ball Width: .500 in.
• H - Head Width: .406 in.
• A - Base to Center: 1.938 in.
• D - Head Diameter: 1.000 in.
• Ball Diameter: .719 in.
• C - Thread Length: 1.250 in.
• Thread Size: 3/8-24
• Thread Class: UNF-3A-LH
• a Misalignment Angle: 12 degree
• Ultimate Radical Static Load Capacity: 9,544 lbs
• Approximate Bearing Weight: .11 lbs
Additional Information
Size: |
3/8 in. Bore |
Size: |
3/8-24 Thread |
Style: |
LH |
Style: |
Male |
Style: |
Rod End |
Material: |
4130 |
