Description

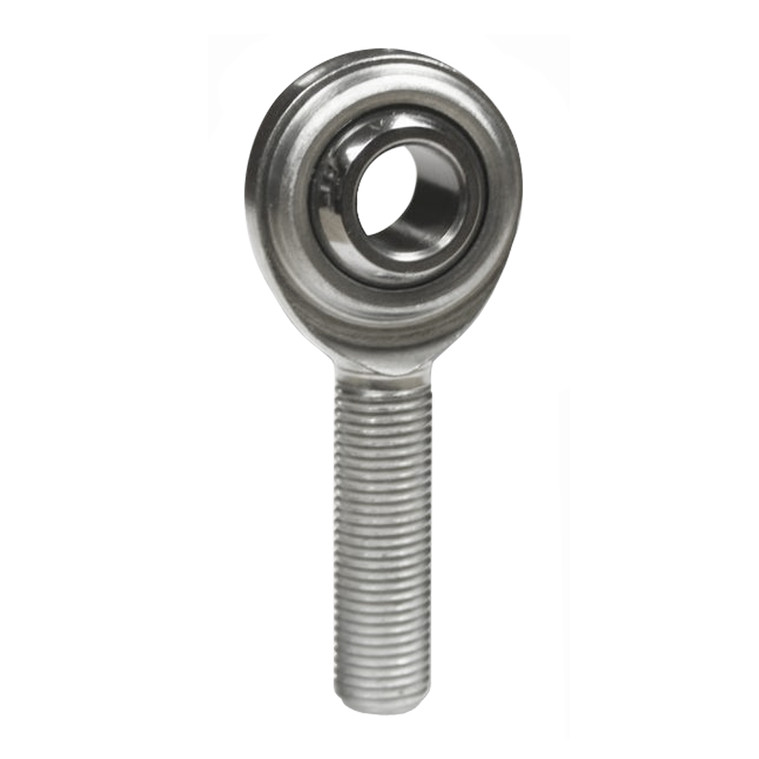

CML6, Male Rod End
Body - Low carbon steel, zince plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .3750 in.
• W - Ball Width: .500 in.
• T - Head Width: .359 in.
• A - Base to Center: 1.938 in.
• D - Head Diameter: 1.000 in.
• Ball Diameter: .719 in.
• C - Thread Length: 1.250 in.
• Thread Size: 3/8-24
• a° Misalignment Angle: 22 degree
• Ultimate Radical Static Load Capacity: 5,100 lbs
• Approximate Bearing Weight: .11 lbs
Additional Information
Size: |
3/8 in. Bore |
Size: |
3/8-24 Thread |
Style: |
LH |
Style: |
Male |
Style: |
Rod End |
Material: |
Mild Steel |
