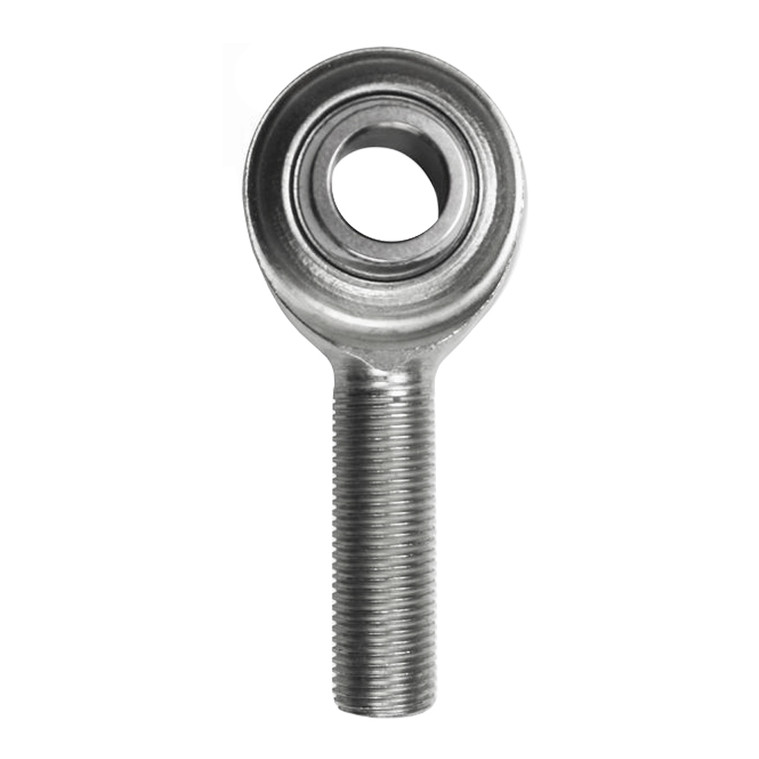

3/8 in. Bore x 3/8-24 Thread LH Male Mild Steel Rod End

CB-6, Male Rod End, General Purpose - Economy

Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .3750 in.
• W - Ball Width: .500 in.
• H - Head Width: .359 in.
• A - Base to Center: 1.938 in.
• D - Head Diameter: 1.000 in.
• Ball Diameter: .719 in.
• C - Thread Length: 1.250 in.
• Thread Size: 3/8-24
• Thread Class: UNF-3A-LH
• a Misalignment Angle: 22 degree
• Ultimate Radical Static Load Capacity: 5,068 lbs
• Approximate Bearing Weight: .110 lbs
