Description

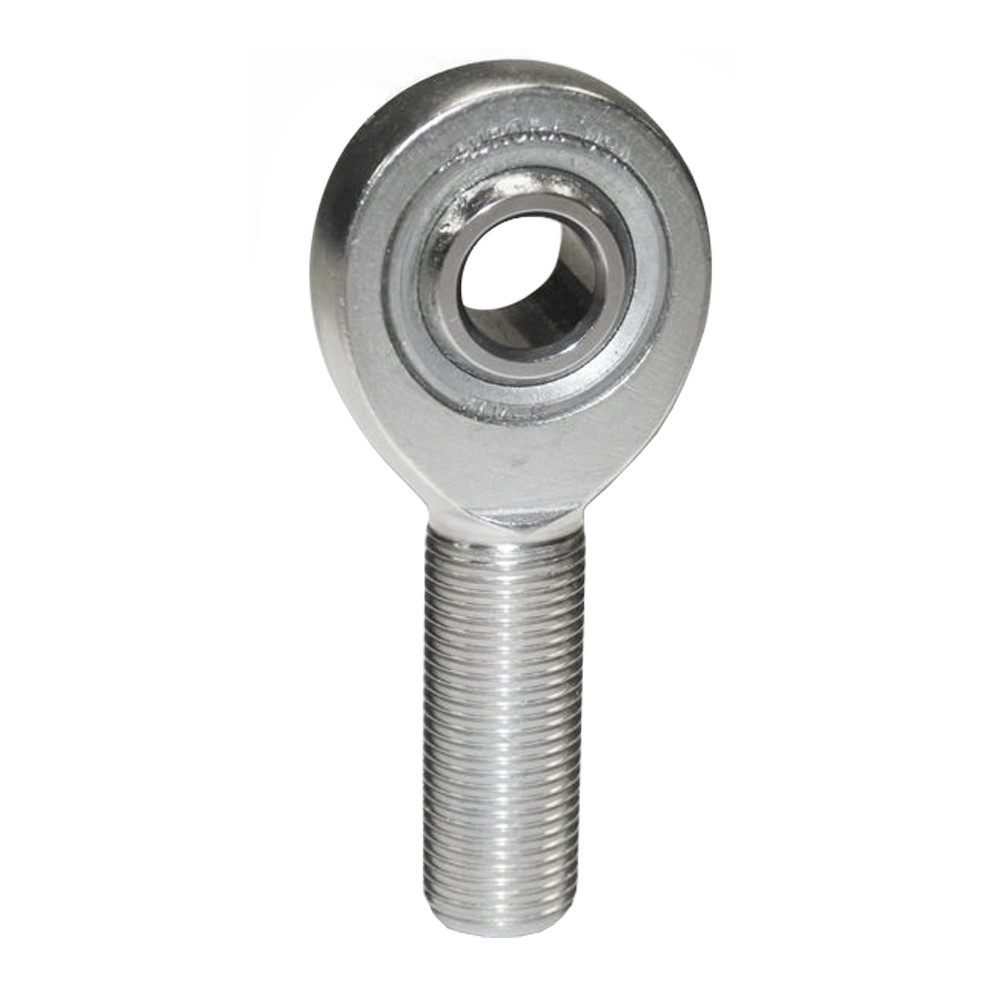

XAB-6, Male Rod End, High Strength Alloy - Heavy Duty Shank
Body - Alloy steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

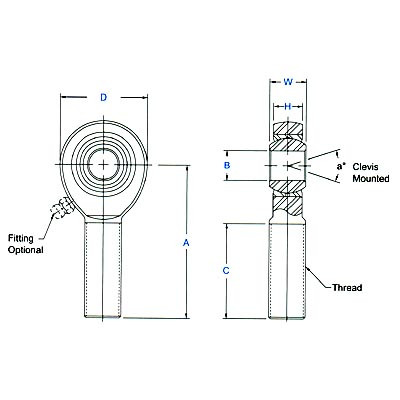

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .3750 in.
• W - Ball Width: .500 in.
• H - Head Width: .406 in.
• A - Base to Center: 2.125 in.
• D - Head Diameter: 1.125 in.
• Ball Diameter: .719 in.
• C - Thread Length: 1.375 in.
• Thread Size: 7/16-20
• Thread Class: UNF-3A-LH
• a Misalignment Angle Clevis Mounted: 10 degree
• Ultimate Radial Static Load Capacity: 17,508 lbs
• Approximate Bearing Weight: 0.160 lb
DEEP DISCOUNT ON IN STOCK INVENTORY ONLY!
LIMITED QUANTITIES AVAILABLE - ONCE THEY ARE GONE - THE DISCOUNT IS GONE TOO!
All clearance item sales are final. Non-returnable.
Additional Information
Size: |
3/8 in. Bore |
Size: |
7/16-20 Thread |
Style: |
LH |
Style: |
Male |
Style: |
Rod End |
Material: |
4130 |
