Description
XAB-10, Male Rod End, High Strength Alloy - Heavy Duty Shank
Body - Alloy steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male

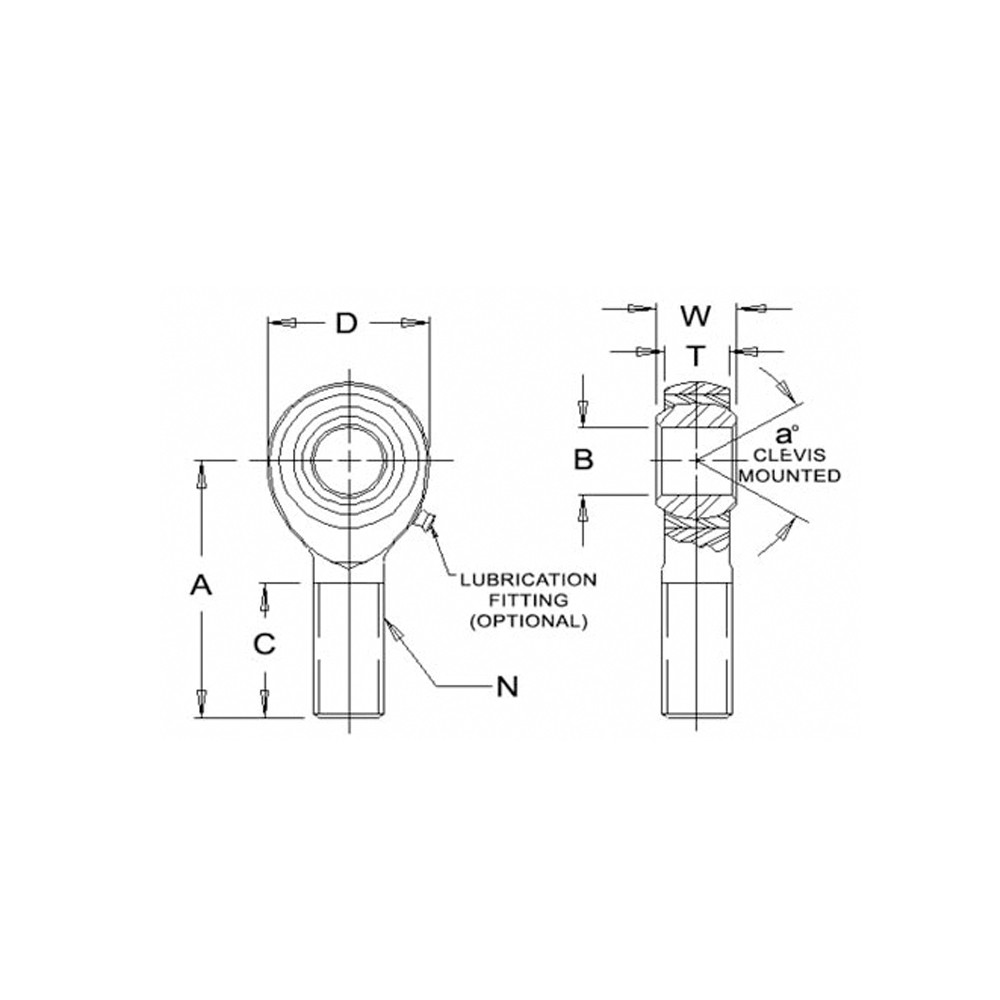

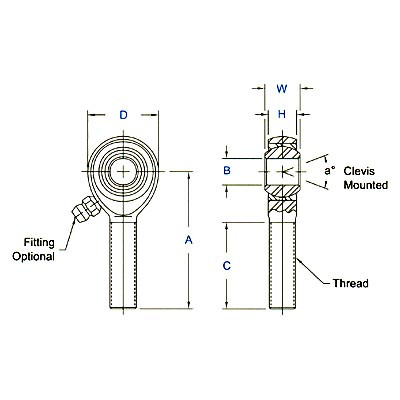

• B - Ball Bore: .6250 in.
• W - Ball Width: .750 in.
• H - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• Thread Class: UNF-3A-LH
• a Misalignment Angle Clevis Mounted: 13 degree
• Ultimate Radial Static Load Capacity: 40,572 lbs
• Approximate Bearing Weight: 0.602 lb
Additional Information
Size: |
5/8 in. Bore |
Size: |
3/4-16 Thread |
Style: |
LH |
Style: |
Male |
Style: |
Rod End |
Material: |
4130 |
