Description

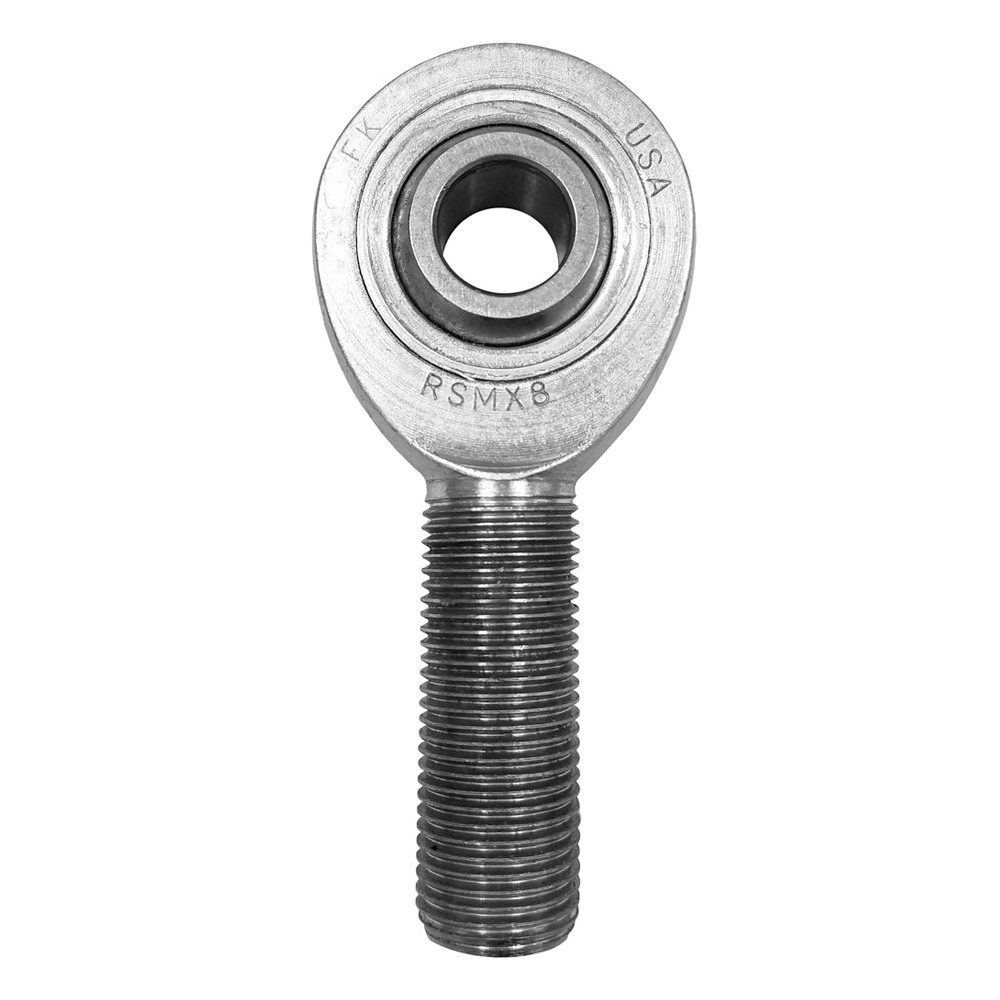

AM-10 Male Rod End, High Strength Alloy - Precision
Body - Alloy Steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

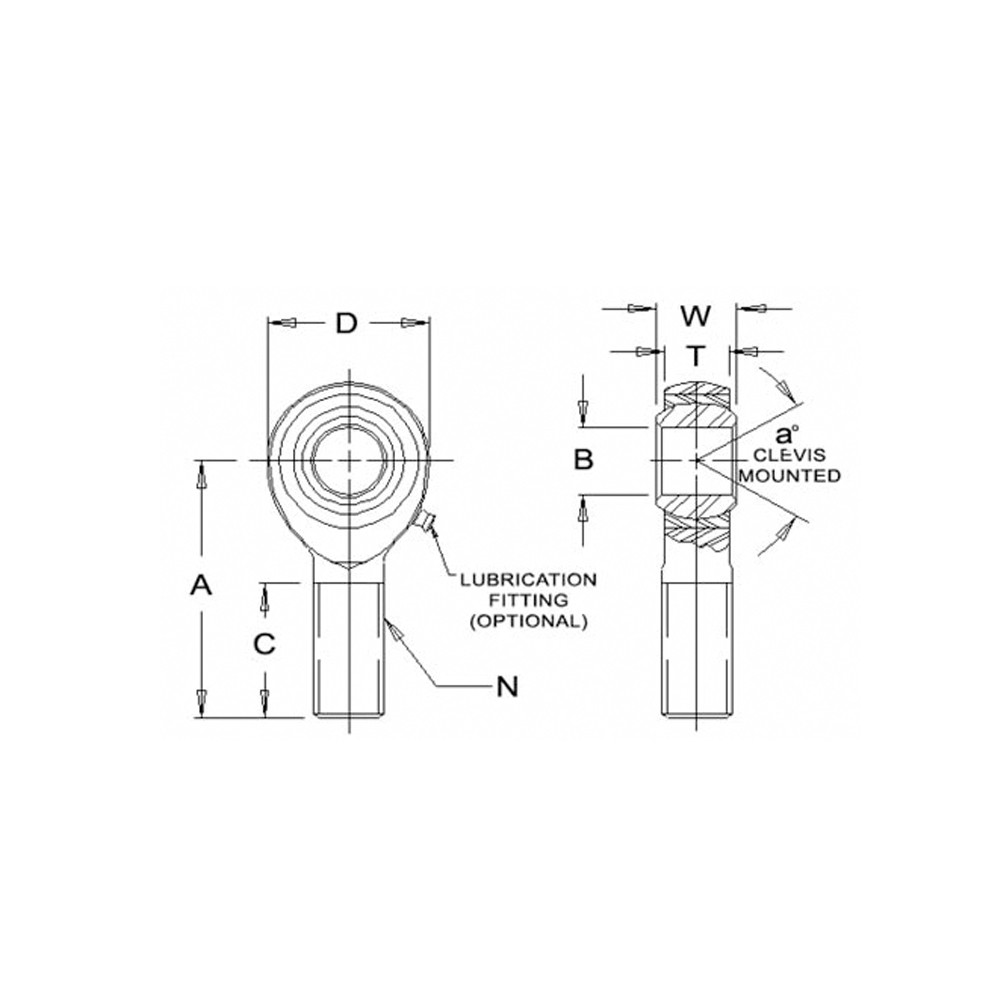

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .6250 in.
• W - Ball Width: .750 in.
• H - Head Width: .562 in.
• A - Base to Center: 2.625 in.
• D - Head Diameter: 1.500 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.625 in.
• Thread Size: 5/8-18
• Thread Class: UNF-3A
• a Misalignment Angle: 16 degree
• Ultimate Radical Static Load Capacity: 17,955 lbs
• Approximate Bearing Weight: .38 lbs
Additional Information
Size: |
5/8 in. Bore |
Size: |
5/8-18 Thread |
Style: |
RH |
Style: |
Male |
Style: |
Rod End |
Material: |
4130 |
