FK Rod Ends

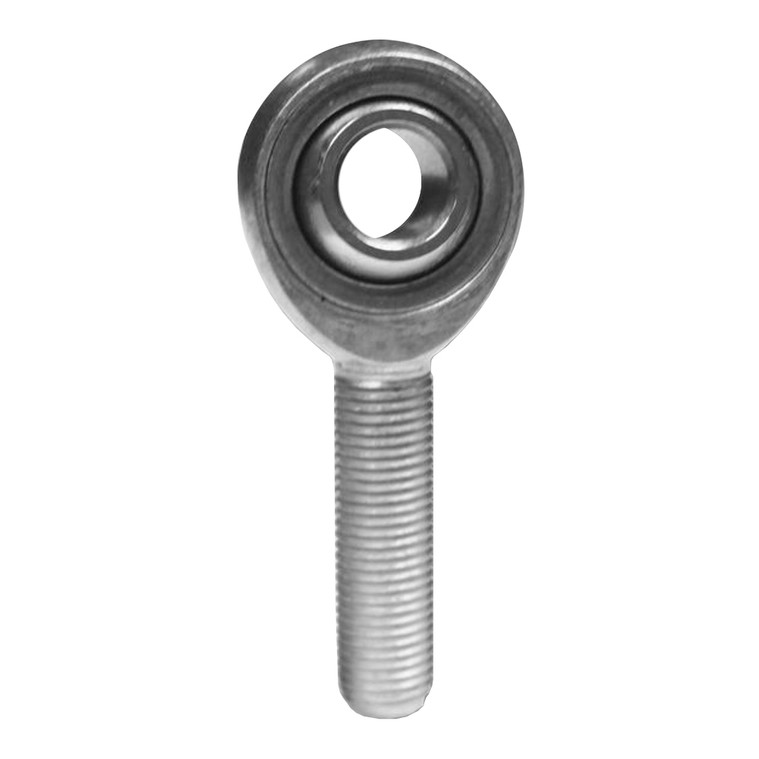

7/16 in. Bore x 7/16-20 Thread RH Male 4130 FK Rod End

(No reviews yet) Write a Review
SKU:
FKB-JMX7
  • FK Rod Ends 7/16 in. Bore x 7/16-20 Thread RH Male 4130 FK Rod End
  • FK Rod Ends Diagram
$17.99

Description

JMX7, Male Rod End

Body - Steel alloy, heat treated, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Race - Steel alloy, heat treated, zinc plated, chromate treated

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .4375 in.
• W - Ball Width: .562 in.
• T - Head Width: .437 in.
• A - Base to Center: 2.125 in.
• D - Head Diameter: 1.125 in.
• Ball Diameter: .812 in.
• C - Thread Length: 1.375 in.
• Thread Size: 7/16-20
• a° Misalignment Angle: 14 degree
• Ultimate Radical Static Load Capacity: 10,290 lbs
• Approximate Bearing Weight: .16 lbs

View AllClose

Additional Information

Size:
7/16 in. Bore
Size:
7/16-20 Thread
Style:
RH
Style:
Male
Style:
Rod End
Material:
4130
View AllClose
