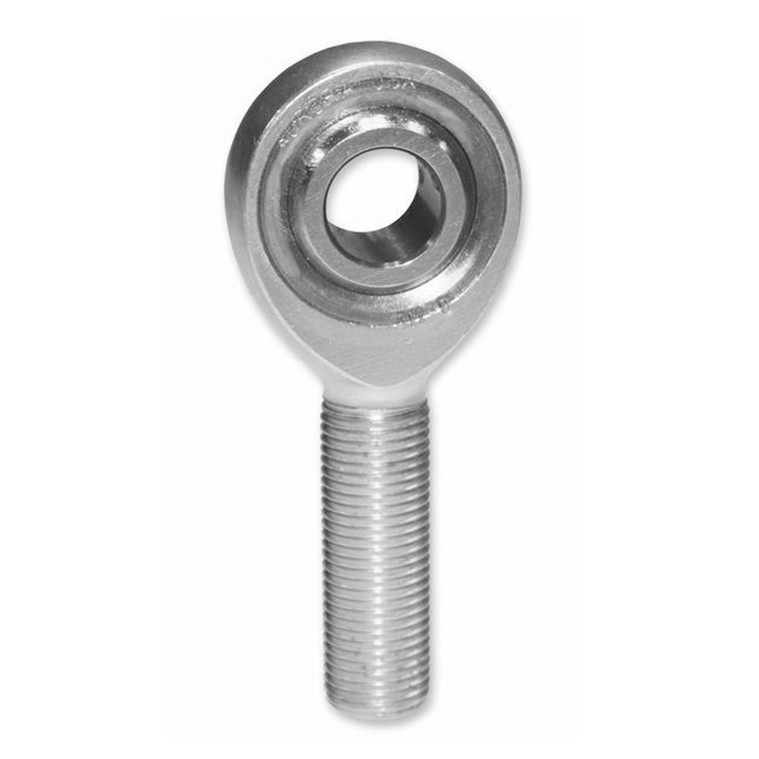

7/16 in. Bore x 7/16-20 Thread RH Male 4130 Rod End

AM-7 Male Rod End, High Strength Alloy - Precision

Body - Alloy Steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male

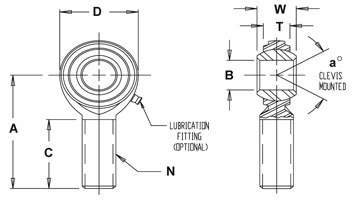

• B - Ball Bore: .4375 in.
• W - Ball Width: .562 in.
• H - Head Width: .437 in.
• A - Base to Center: 2.125 in.
• D - Head Diameter: 1.125 in.
• Ball Diameter: .812 in.
• C - Thread Length: 1.375 in.
• Thread Size: 7/16-20
• Thread Class: UNF-3A
• a Misalignment Angle: 14 degree
• Ultimate Radical Static Load Capacity: 10,285 lbs
• Approximate Bearing Weight: .160 lbs
