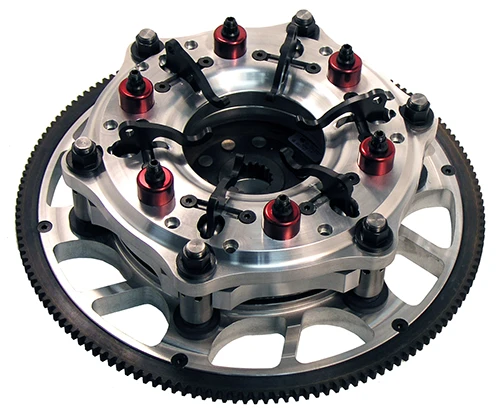

8 In. Billet Clutch

RAM Professional billet clutches are engineered to provide the ultimate in clutch control.

RAM billet clutches feature a unique lever design that allows for complete control of the centrifugal loading of the clutch. They design these levers using solid modeling that enables them to accurately predict the performance of the counterweight through the RPM range. Units are available in single, double, and triple disc versions utilizing either 5135 or 5191 compound iron discs. Every RAM Professional billet clutch is custom built for your application based on the specifications of your car.

When ordering, please be prepared to provide the following information: Engine, crank flange, balance, ring gear tooth count, bellhousing, transmission, low gear ratio, spline, tire size, rear gear, vehicle weight, and any power adders. Please allow 1-2 weeks for standard ring gear configurations, 4 weeks for custom flywheels. All RAM billet units require a bellhousing depth of 8 1/8 inches or more.

8 In. Billet Clutch Specifications:
• Use: Top Sportsman, Comp Eliminator, Super Stock, Sport Compact RWD
• Weight: 33-38 lbs.
• Pressure: 0-1440, 420 base, 690 base, 900 base
• Upgrade Options: 1, 2 or 3 disc, fixed or floating yoke, TMT coating on friction surfaces, bronze floaters, titanium cover, pressure ring, and/or flywheel
• Splines: 1 3/16-18, 1 3/8-10

Sold individually.

Please call 309-343-7575 for current pricing and to place your custom order.
