Big Switch Battery Disconnect, 250 Amps

(No reviews yet) Write a Review
SKU:
FLR-FR1003-1

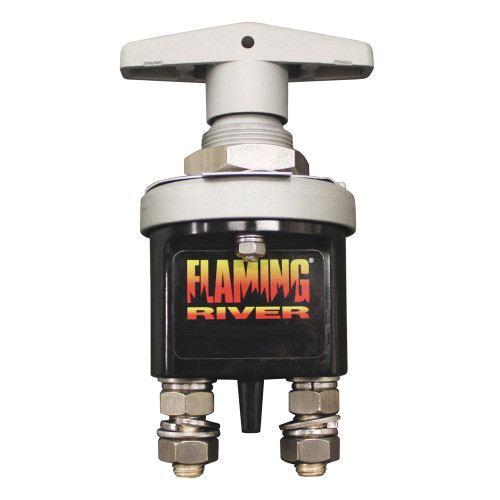

  • Flaming River FR1003-1 Big Switch Battery Disconnect, 250 Amps
  • Flaming River FR1003-1 Big Switch Battery Disconnect, 250 Amps - Installed
$89.88

Description

Required by most sanctioning bodies, the master disconnect switch cuts off all electrical power in the event of an accident. This is a 250 amp switch.

Specifications:
• Voltage: 12V/24V
• Max Continuous Current: 250 Amps
• Max Surge Current: 2500 Amps (5 seconds)
• Environmental Protection Rating: IP65
• Waterproof: Yes
• Operating Temperature Range: -40°F to +176°F
• Contact Terminals: Silver Plated Copper
• Contact Hardware: Nickel Plated Brass
• Stud Diameter: M10
• Available Stud Length: 0.775" (approx. 25/32 in.)
• Max Tightening Torque: 11-13 ft/lbs
• LED ON/OFF Indicator: No
• Lock-Out Capacity: No
• Mounting Bracket Included: No
• Terminal Covers Included: No
• Extension Handle/Lever: No
• Approved for NHRA/IHRA competition use
