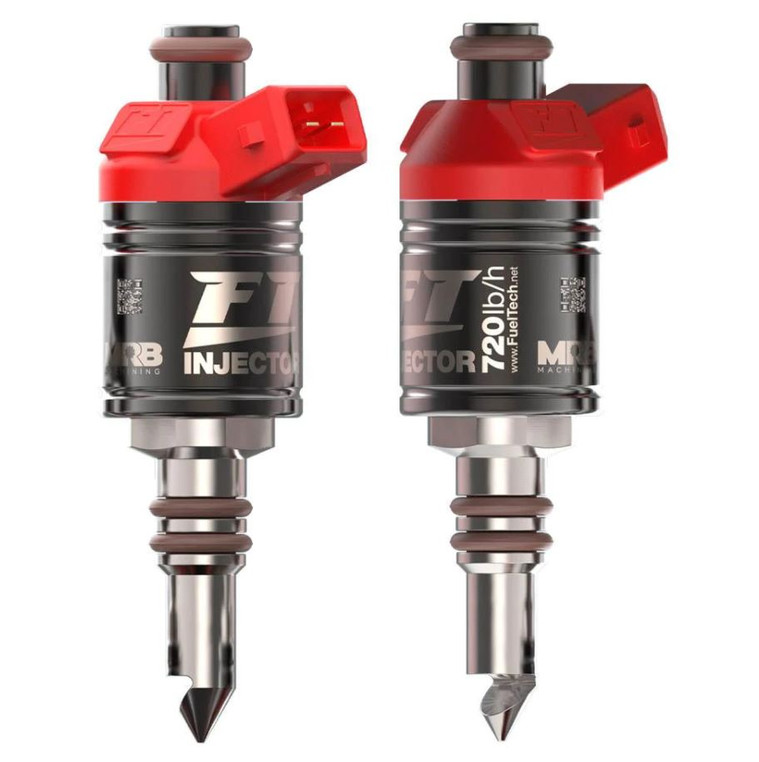

FT Fuel Injector, 720 LB/H, O-Ring/-6 ORB/TIP45 Fitting

The FT Injector is compatible with any ECU available on the market and an 8A/2A Peak and Hold injector driver required.

FEATURES
• REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders
• It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used
• Reduce the number of injectors, connections and hoses in your project;
Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
• Tested and approved on +4,000 horsepower engines
• Compatible with any ECU on the market
• Use outputs from your ECU (by reducing the number of injectors)
• FuelTech warranty and support
• Project developed prioritizing the quality and durability of the injector

TECHNICAL DESCRIPTION
• Low impedance: 1.5 Ohms
• It is necessary to use an 8A/2A Peak and Hold driver
• Voltage limit: up to 24V
• Fitting: O-Ring/-6 ORB?TIP45

DIMENSIONS:
• Injector: 86 x 32 mm

WEIGHT: 160g

PRODUCT CONTENT:
• 1 FT Injector
• 1 Manual

WARRANTY: 90 days
