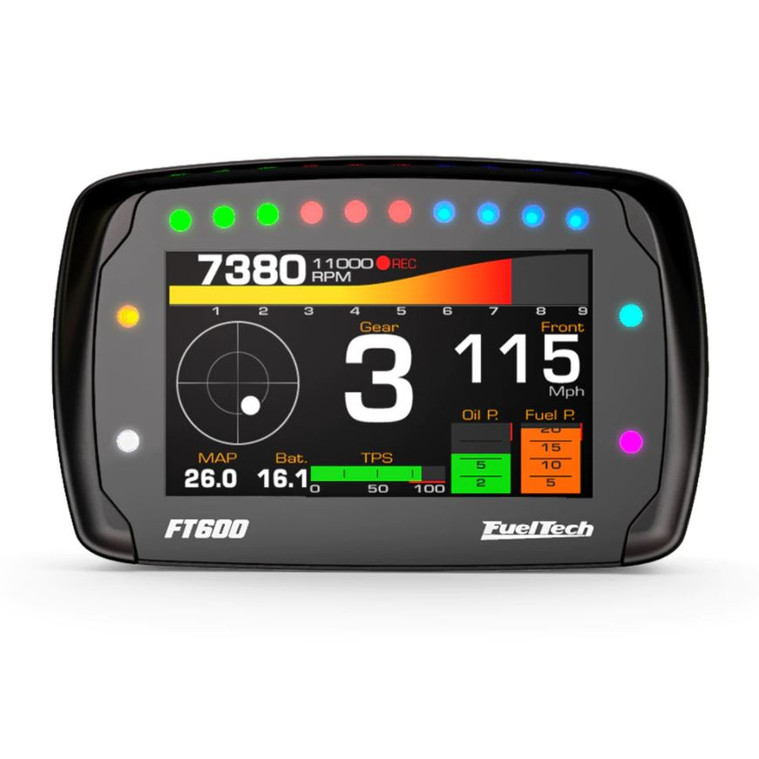

FT600 EFI System with 10 Ft Unterminated Harness

(No reviews yet) Write a Review
SKU:
FT-3010004009/2001004001
  • FT600 EFI System with 10 Ft Unterminated Harness
  • FT600 EFI System with 10 Ft Unterminated Harness
  • FT600 EFI System with 10 Ft Unterminated Harness
  • FT600 EFI System with 10 Ft Unterminated Harness
  • FT600 EFI System with 10 Ft Unterminated Harness
$3,298.00

Description

A FT600 is FuelTech’s most advanced engine control and monitoring system. It is an ECU, dashboard, data acquisition and power management system!

Includes the FT600 10 Ft Unterminated Harness. FT600 unterminated harness is used when wiring everything from scratch. This harness consists of FT600 – A and FT600 – B, each wire has identification printed onto the wire.

The FT600 has a new and exclusive extremely high quality aluminum housing, which is also waterproof to IP67 standards. Its design includes an upper visor that reduces glare and houses 10 LED lights that are color and intensity adjustable, suitable for a progressive shift light. There are also 4 more LED lights on the side of the ECU that are adjustable for diagnosing, alerts and current status of any sensor. The FT600 has an anti-glare TFT touchscreen display and embodies a redesigned dashboard exclusively developed to grant the driver an easier viewing experience. The touch screen display makes it possible to make map adjustments directly on the ECU, without the need to use a laptop.

The FT600 is able to manage sequential injection and ignition on engines from 1 up to 12 cylinders (or up to 4 rotors). It comes with an option for simplified maps which allow making initial adjustments easier or 3D maps for more advanced applications. This new ECU presents individual cylinder injection and ignition trim and exclusive features that help on the first engine start. It also contains an advanced and efficient closed loop fuel control for engine safety.

Developed on the PowerFT platform, already praised for the FT500, the FT600 presents new features such as the new SUPERSEAL automotive connectors that add up to 68 pins (20 sensor inputs and 32 outputs), accelerometer and gyroscope, 2 CAN networks, and a built-in GearController. The last feature enables the direct connection with the strain gauge sensor on the shifter, bringing new possibilities for more efficient engine gearshift cuts.

The FT600 also presents a pack of beloved racing functions used all over the world, such as time based launch features, Boost control, Staging control, Pro-Nitrous control, advanced internal datalogger, just to name a few!

The FT600 uses the same FTManager software, with all resources and existing functions. It is also compatible with all existing features and FT500 maps. You can open, edit and save maps through an interactive interface that is easy to use.

Product intended for off road race-only, ground vehicle use only. FuelTech is not responsible for any misuse of these products. Check with your local authorities regarding highway laws in your area.

SPECIFICATIONS:
• Otto cycle engine control for 1, 2, 3, 4, 5, 6, 8, 10 and 12 cylinders
• Wankel engine control (rotary) for 2, 3 and 4 rotors
• Full sequential ignition control, semi-sequential and multipoint control
• Ignition control through trigger wheel or distributor
• Full sequential ignition or wasted spark
• Closed loop injection through oxygen sensor (wide band lambda sensor)
• AMP SUPERSEAL automotive connectors
• Electronic throttle body Control (Drive-By-Wire)
• Ignition timing and actuator based Idle control (throttle body, step motor, or PWM valve)
• Real-time adjustable maps on the screen and on the FTManager software
• Aluminum case with IP67 certified waterproof seals (capable to withstand up to 1 hour under 1.65 feet of water)

INPUTS:
• Differential input for RPM signal
• Differential input for cam sync signal
• 20 input channels which are completely adjustable – digital and analogic (temperature, pressure, speed and position sensors, TPS, external MAP, buttons, keys, etc.)
• 2 inputs with a high gain preamplifier usually used with a strain gage sensor
• Adjustable sensor reading scale
• Speed sensor and integrated gyroscope
• Internal MAP sensor of 7 bar (1 bar vacuum and 6 bar positive pressure)
• 1 USB port for computer and FuelTech software connection
• 2 CAN ports for FuelTech FTCAN 2.0 or FTCAN 1.0 (communication with FuelTech WB-O2 Nano, FuelTech EGT-8 CAN, Racepak IQ3 (requires Racepak Universal Interface Module), FuelTech FTSPARK, VNET, AiM, etc) OEM CAN partial compatibility with: C6 Corvette, C7 Corvette, 5th gen Camaro, 2009 CTS-V Cadillac

OUTPUTS:
• 32 general-purpose outputs: (all of which can be used for general accessories as fuel pump, thermatic fans, valves, injectors, solenoids, etc.)
• 16 open collector outputs: recommended for high impedance injectors (up to 4 injectors per output) – it is possible to set up to 32 injectors using external FuelTech Peak and Hold ECU
• 8 open collector outputs with a 5V current source of: recommended for ignition control
• 8 PUSH-PULL or HALF BRIDGE outputs: suitable for ignition, step motor control, electronic throttle body and to activate loads by 12V instead of ground

DASHBOARD/ON-BOARD COMPUTER:
• Screen dashboard which displays different sizes and styles to be used with any existing equipment or sensor
• Dashboard can have up to 4 screens with navigation through the screen or external button
• Upper tab with 10 LED lights, colored RGB and adjustable progressive shift light
• 4 RGB LED side lights which can be triggered by 3 different combined settings
• Diagnosis dashboard with real-time information of all inputs, outputs, CAN engine start diagnosis and Status Events
• Customizable splash screen allows the user to select the image shown on the FT550 start up screen

INJECTION CONTROLS:
• Full sequential injection for up to 24 outputs
• Closed loop fuel control through O2 sensor (wide band sensor)* * An external wide band lambda sensor conditioner is required – FuelTech WB-O2 Nano, Alcohol-O2, WBO2 Datalogger, etc.)
• 2 injection banks (Bank A and bank B)
• Primary map though MAP, TPS or RPM
• Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
• Simplified 2D map with up to 1x32 cells by MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
• Injection time resolution of 0,001ms
• Acceleration fuel enrichment and decay adjustment
• Individual cylinder trim setting by MAP or RPM
• Injector compensation through:
- Engine temperature
- Air temperature
- Battery voltage (individual per bank)
- TPS or MAP
- Starting engine map with the engine temperature
- Prime pulse table
- Post start enrichment
- Gear based fuel compensation
- Gear shift fuel compensation
- Fuel injection angle table
- Injectors deadtime compensation by battery voltage

IGNITION CONTROLS:
• Sequential ignition for up to 12 cylinders
• Main map by MAP, TPS or RPM
• Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
• Simplified 2D map with up to 1x32 cells per MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
• Injection angle resolution of 0,01 degree
• Individual cylinder injection settings
• Ignition timing compensation by air temperature
• Ignition timing compensation by engine temperature
• Gear based timing compensation
• Gear shift timing compensation

INTERNAL DATALOGGER:
• Multiple session recording (files) logs up to 256 channels
• Simplified mode with sample rate of 25, 50, 100 or 200Hz
• Advanced mode allows individual settings for the sample rate with 1, 5, 25, 50, 100 or 200Hz
• Automatic activation by RPM, through the screen or by external button
• Data storage for up to 2h50min (24 channels at 25Hz)
• FTManager Datalogger Software for viewing and comparing logs

DRAG RACING FEATURES:
• Burnout mode, 2-step, 3-step
• Ignition timing map for drag Racing features
• Line lock brake output
• Brake pressure control by line lock
• 2-step activation by speed, boost, MAP or clutch position
• Time based RPM limiter by timing retard or ignition cut
• Time based wheel speed or driveshaft RPM control with timing retard or ignition cut
• Time-based ignition timing compensation
• Time-based fuel compensation
• Pro-Nitrous setting for up to 6 stages, with activation control, fuel enrichment and ignition timing maps
• Gear shift output
• Time based output
• Staging control
• Wheelie Control

STREET CAR PACKAGE:
• Total and partial hour meter
• Total and partial odometer
• High and low beam
• Right and left turn signals
• Pit Limit / Speed Limit
• START/STOP button

SECONDARY FEATURES:
• Integrated GearController : ignition cut for clutchless gear shiftings using a strain gage sensor on the shifter
• Integrated BoostController: wastegate valve pressure control
• Idle speed control by timing, step motor, PWM valve or electronic throttle body
• Deceleration fuel cutoff
• Control of up to two thermatic fans through engine temperature or air conditioning, one of the outputs can drive a solid state using PWM control for soft starting the fans
• Air conditioning control
• Fuel pump control – with 6s prime
• Variable Valve Timing (VTEC) control
• Progressive nitrous control with fuel enrichment and timing retard
• Generic duty cycle – PWM control
• Boost activated output
• RPM activated output
• Different options for gear detection: RPM drop, analogic sensor, pulse, speed and gear ratio, by gear shift output or GearController
• Start button. Allows to start and shut down the engine via a relay connected to an output switching the starter
• Cold start with external reservoir
• Differential control for Yamaha YXZ1000 UTV
• Active traction control keeps wheel slip on ideal levels for maximum traction, thus adapting the available traction conditions as it seeks to maintain the programmed wheel speed difference by reading traction wheel and reference wheel speed difference
• Hi-resolution engine power control method for RPM limiter. Controls timing on each cylinder and considerably reduces the turbo spool time in a transbrake/2-step rev limiter, keeps cylinders and spark plugs in conditions of maximum efficiency (they never get wet because they always fire), allow to lower the RPM limiter for launch or to make more boost at the same RPM and smoothens the 2-step limiter operation for less vibration. (Patent pending)
• Pit Limit / Speed Limit
• Generic outputs allow to configure up to 8 outputs by associating an input and setting up the way the output will be activated

DEFAULT SENSORS:
• Oil pressure
• Fuel pressure
• External MAP sensor (GM 1 bar, GM 1.05 bar, GM 2 bar, GM 3 bar, GM 3.05 bar)
• Nitrous bottle pressure
• Clutch pressure
• Wastegate pressure
• Brake pressure
• Back pressure
• Pan Vacuum
• Transmission pressure
• Torque converter pressure
• Engine coolant pressure
• Air temperature
• Engine temperature
• Exhaust gas temperature (EGT)
• Transmission temperature
• Intercooler temperature
• Tire temperature
• Track temperature
• Clutch position
• Shock position
• Wheel speed
• Turbocharger speed (up to 2)
• Driveshaft RPM
• Input shaft RPM
• Ride height sensor
• Pitch rate sensor
• Flex Fuel sensor

PROTECTION AND ALERTS:
• RPM limiter by fuel or ignition cut
• Shift light with sound and dashboard alert and/or external shift light
• Configurable safe mode options (RPM limit or engine shutoff)
• High or low exhaust gas temperature (EGT), O2 closed loop limit, over boost, over rev, engine temperature, duty cycle, oil pressure, fuel pressure and differential fuel pressure

SOFTWARE:
• FTManager has several tools and features:
- Real-time map edition
- Edition of the indexes of map tables
- Save and read saved maps on the PC
- Open maps from log files
- Display fuel maps in ms, %VE, %DC and lb/h
- Easy edition of time-based controls, organizing all in one screen and making it possible to use a log file as reference
- ProNitrous edition aided by the stage chart
- Allows converting maps of previous ECUs (FT200, FT250, FT300, FT350 and FT400)
- Allows importing of some specific tables from other maps
- ECU software upgrades
- Splash screen customization
- Engine operation in real time analysis through gauges and graphics with full screen option
- Check alert and status messages
- Test time-based features
- Edit channels of the internal datalogger and their individual logging rates
- Switch between basic (2D) or advanced (3D) maps
- Edit the odometer and hourmeter
- Reset the ECU to factory default
- Recalibrate the touchscreen
- View all devices connected to the CAN network
- Receive warnings about new updates
- Internet Remote Tuning allows connecting to another FTManager over the internet, for giving or receiving remote supporT
• FTDatalogger:
- Download and analyze log files from PowerFT ECUs
- Log files comparison
- Mathematical channels
- Data export to CSV file
- Overlay functions easily show which cell the engine was running on for better data analysis:
- Fuel tables overlay
- Ignition tables overlay
- Closed loop corrections: allows the user to see and apply all the corrections applied by the O2 closed loop on a log file.
- Select between light or dark background for better data visualization
- Select if you want to show channels names and values on the chart or only in the preview panel
- Full timeline visualization
- Set log zero time (tell the log time where the car launched)
- Erase your ECU datalogger memory
- Trim feature for log files – make then smaller and have only the information you need
• FuelTech Datalog App:
- Open your log files on your phone`s screen (up to 4 channels at the same time) - (Android and iOS).

DIMENSIONS:
• Product FT600 EFI: 5.86 x 3.7 x 2.42 in.

WEIGHT:
• Product FT6000 EFI: 20.74 oz

WARRANTY:
• 1 year

CONTENTS OF PACKAGING:
• 1 FT600 EFI
• 1 FT600 10 Ft Unterminated Harness
• 1 operation and installation guide
• 1 mounting kit (4 rubber mounts, 4 washers and 4-1/4 in. nuts)
• 1 protection cover for the FT600 ECU
• 1 FuelTech FT600 exclusive badge
• 1 USB flash drive (containing the FTManager softwares and guides)
• 1 mini USB cable
• 1 Nylon hose for MAP Sensor
• 1 promotional kit (including a pen, a keychain and a sticker kit)
