Description

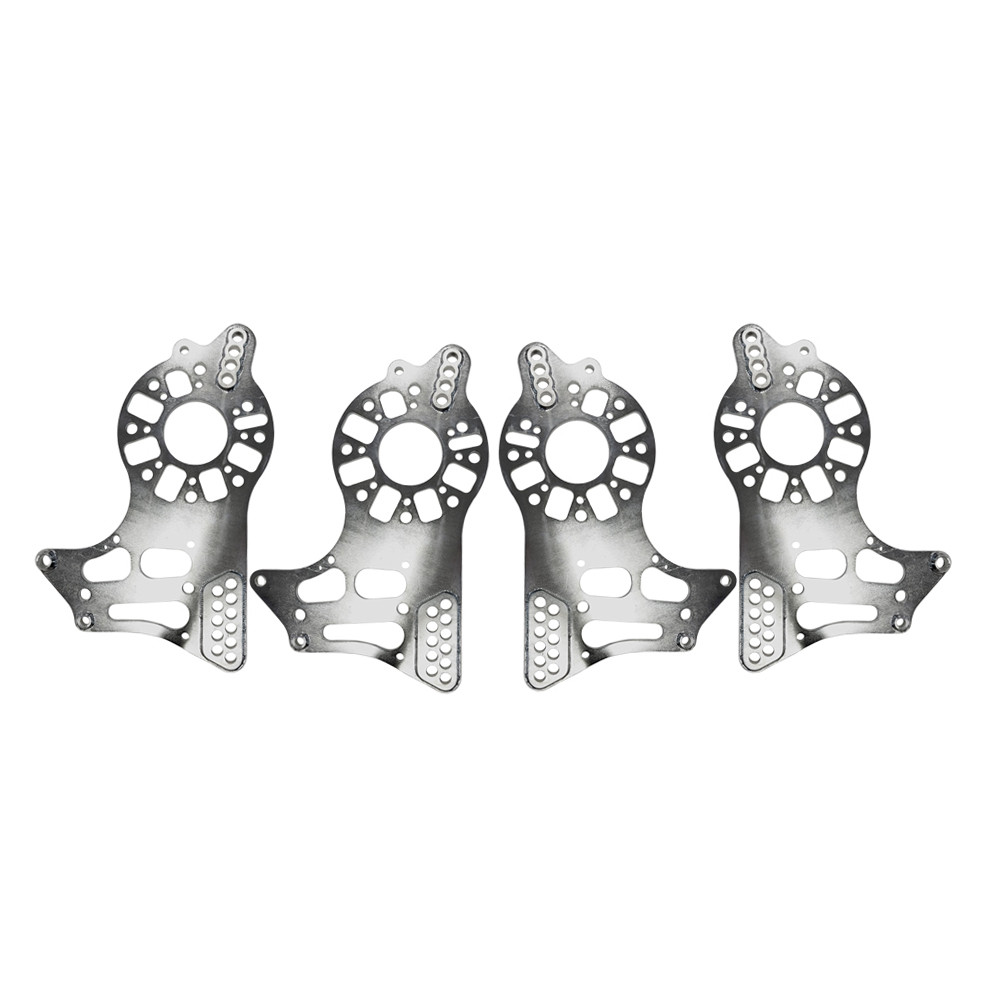

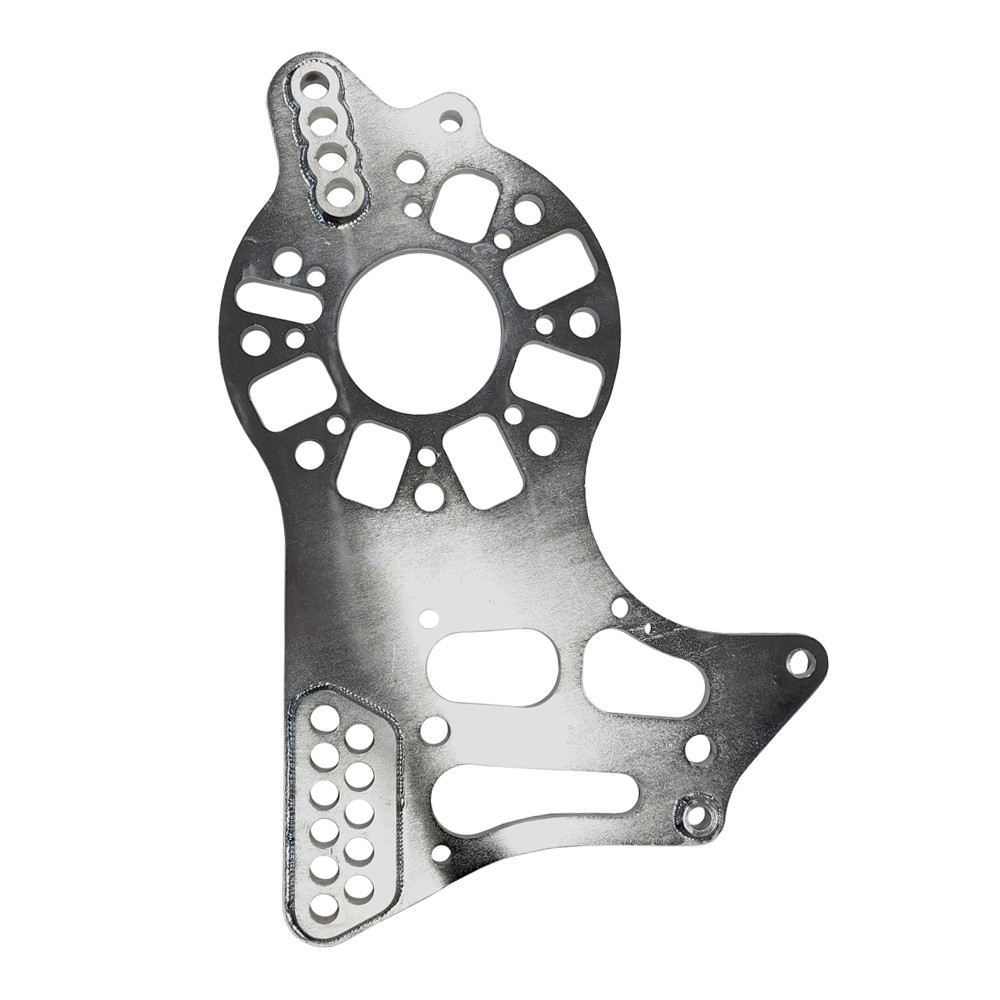

Manufactured in-house to the highest quality standards, Quarter-Max's Extreme Pro Series 4-Link Housing Brackets feature precisely machined hole locations and exceptionally smooth profiles. Designed as a competitive upgrade, this Extreme Pro Series version offers a significantly wider range of adjustment for your 4-link hole locations compared to the standard Strange modular housing bracket, giving you the ultimate tuning edge on the track.
Key Features
• Enhanced Adjustability: Offers an expanded range of 4-link tuning options for precise suspension dialing.
• Reinforced Strength: Features 1/8" upper and lower doubler plates, precision-welded directly to the brackets for maximum durability.
• Integrated Mounts: Built-in doubler bushings for both anti-roll bar mounts and lower wheelie bar mounts.
• Data Ready: Includes a pre-threaded shock sensor hole for easy sensor integration.
Specifications
• Material: 4130 Chromoly
• Thickness: 1/4"
• 4-Link Bolt Size: 1/2"
• Quantity: Sold in sets of 4
• Installation & Tech Tips
• Mock-Up & Welding: Use Grade 8 bolts alongside our 4-link jigs to secure the brackets in the correct position while mocking up and welding.
• Post-Weld Preparation: Once all welding is complete, ream the holes using our 7-Piece Chucking Reamer Kit (Part #QM-219850).
• Important Warning: Do not use a drill bit to clear the holes, as this can compromise precision!
• Final Assembly: Upgrade to our NAS 4-Link Bolt Kit during final assembly to eliminate bolt movement and secure the tightest possible fit.
