RJ Chassis Blueprints

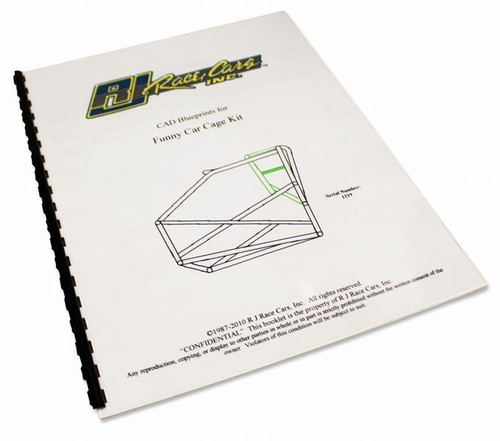

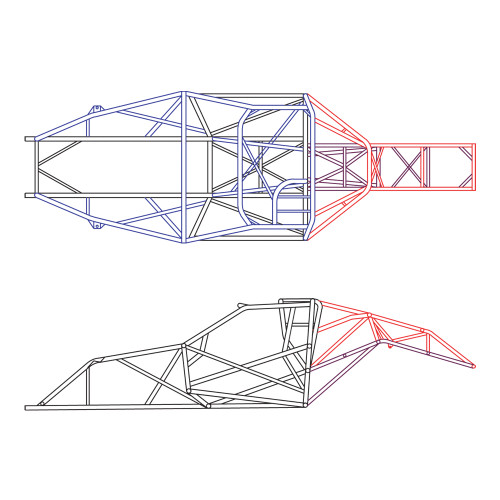

Our chassis blue prints are exactly what you’ve been looking for! This bound book contains 10 separate views with color coded tubes. Easy to read and follow. Complete tubing and bracket list is included to ease the building process. Each tube is numbered and referenced on all views to eliminate confusion during the building process. All dimensions were taken from actual cars being built on our surface plate jig at RJRC. Our blueprint and chassis kit customers are always amazed by how complete the prints are and how closely their finished chassis fits their body. Choose your body style from the list above.
Since all of our bending is done with dies, we do not incorporate bend angles in the blueprints. We highly recommend that you have a body available during the building process. If this is not possible, we recommend you purchase a complete chassis kit from us that comes with all the critical pre-bent chassis tubes. Please Note: All sales for blueprints are final and are non-refundable. No exceptions.
Custom/non-standard wheelbase blueprint modification fee may apply to certain styles, please call for details.
