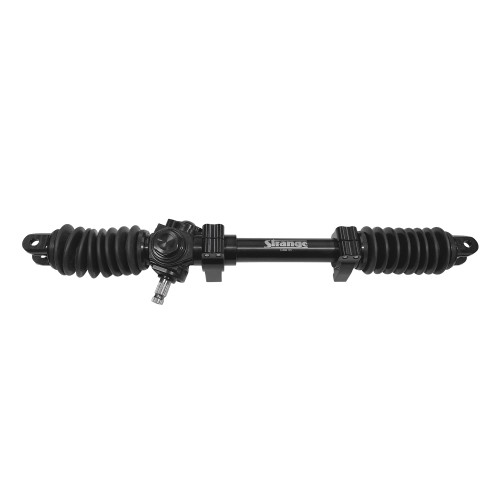

Billet Steering Rack & Pinion, 19.5 in. Tie Rod Centers

Application
Door Cars – Drag Race Only

Description
Steering Rack & Pinion
• 1.34 in. of rack travel per pinion revolution
• 22 to 1 ratio
• 19.5 in. tie rod centers
• 20 degree horizontal pinion angle
• 9/16-26 spline pinion - Same spline as Mustang / Pinto
• 16 degree vertical pinion angle
• 4.75 in. total rack travel
• 6.10 in. mounting clamp centers

Features
Body
• 6061-T6511 billet aluminum
• Black anodized finish

Rack & Pinion Gear
• 4140 premium alloy steel
• Heat treated

Clevis Ends
• 6061-T6511 billet aluminum
• Accepts 3/8 in. high misalignment rod ends *
HXAM-16T (RH threads) HXAB-16T (LH threads)
• Black anodized finish

Mounting Clamp - Pinion Side
• 6061-T6511 billet aluminum
• 7/16-14 bolt holes on 1.125 in. centers
• Black anodized finish

Mounting Clamp - Opposing Side
• 6061-T6511 billet aluminum
• 3/8-16 bolt holes on 1.380 in. centers
• Black anodized finish

* Rod Ends Not Included

Click here to view the RJ-203128 Rack & Pinion Mount Kit designed specifically for the Strange Engineering Rack & Pinion.

Click here to view the RJ-203099-1 Tie Rod Tube Kit designed specifically for the Strange Engineering Rack & Pinion.
