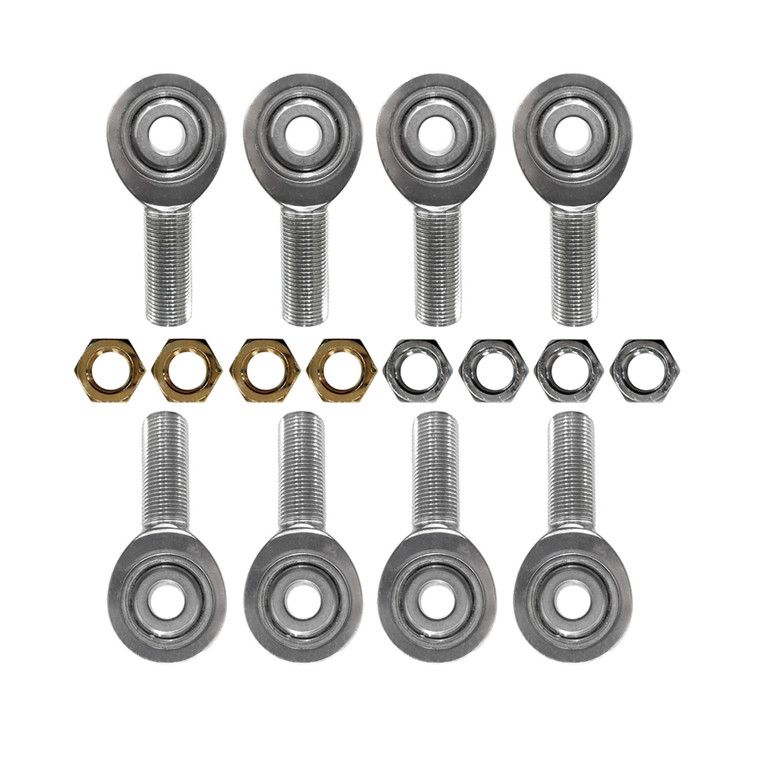

1/2 in. Bore x 3/4-16 Thread 4130 FK Rod End Kit

1/2 in. Bore x 3/4-16 Thread 4130 Rod End Kit

Kit includes:
• (4) FKB-RSMXL10-8T - 1/2 in. Bore x 3/4-16 Thread LH Male 4130 Rod Ends, PTFE Lined
• (4) FKB-RSMX10-8T - 1/2 in. Bore x 3/4-16 Thread RH Male 4130 Rod Ends, PTFE Lined
• (4) RJ-JNL-1216 - 3/4-16 Thread LH Jam Nuts
• (4) RJ-JNR-1216 - 3/4-16 Thread RH Jam Nuts

RSMXL10-8T/RSMX10-8T Specifications:
• Thread Type: Left/Right Hand
• Thread Configuration: Male
• B - Ball Bore: .5000 in.
• W - Ball Width: .750 in.
• H - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• a Misalignment Angle Clevis Mounted: 13 degree
• Ultimate Radical Static Load Capacity: 40,590 lb
• Approximate Bearing Weight: 0.38 lb

JNL-1216/JNR-1216 Specifications:
• Thread: .7500-16
• F Ref: 1.125 in.
• G Ref: 1.299 in.
• H Ref: .422 in.
