FK Rod Ends

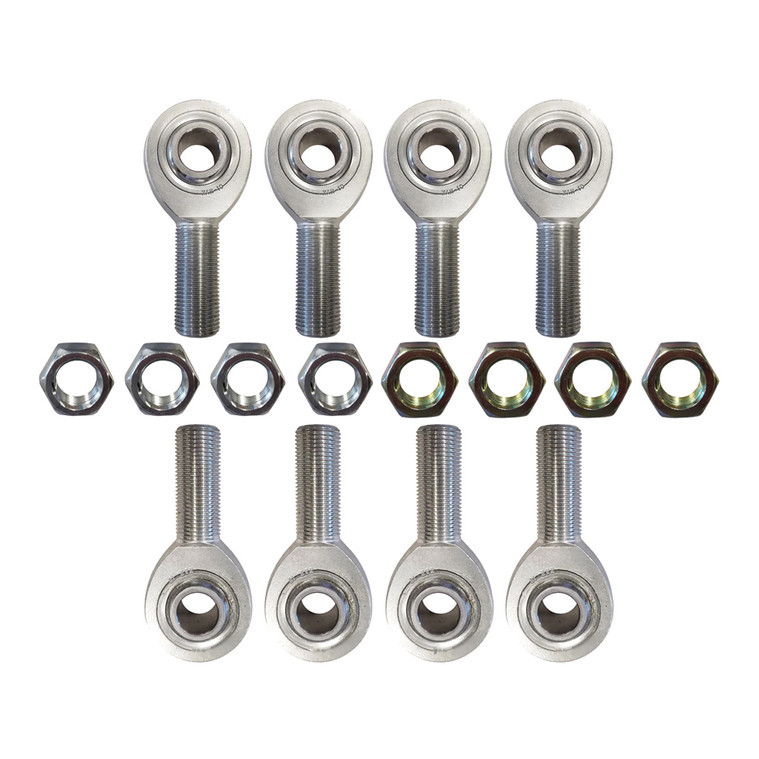

5/8 in. Bore x 3/4-16 Thread 4130 FK Rod End Kit

(No reviews yet) Write a Review
SKU:
FKB-000002
  • 5/8 in. Bore x 3/4-16 Thread 4130 FK Rod End Kit
  • FK Rod End Diagram
  • Jam Nut Diagram
$393.99

Description

5/8 in. Bore x 3/4-16 Thread 4130 FK Rod End Kit

Kit includes:
• (4) FKB-RSMXL10 - 5/8 in. Bore x 3/4-16 Thread LH Male 4130 Rod Ends
• (4) FKB-RSMX10 - 5/8 in. Bore x 3/4-16 Thread RH Male 4130 Rod Ends
• (4) RJ-JNL-1216 - 3/4-16 Thread LH Jam Nuts
• (4) RJ-JNR-1216 - 3/4-16 Thread RH Jam Nuts

RSMX10/RSMXL10 Specifications:
• Body - Steel alloy, heat treated, zinc plated, chromate treated
• Ball - 52100 steel, rc 56 min, hard chrome plated
• Race - Steel alloy, heat treated, zinc plated, chromate treated
• Thread Type: Left/Right Hand
• Thread Configuration: Male
• B - Ball Bore: .6250 in.
• W - Ball Width: .750 in.
• T - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• a° Misalignment Angle: 13 degree
• Ultimate Radical Static Load Capacity: 40,590 lbs
• Approximate Bearing Weight: .602 lbs

JNL-1216/JNR-1216 Specifications:
• Thread: .7500-16
• F Ref: .1.125 in.
• G Ref: 1.299 in.
• H Ref: .422 in.

View AllClose

Additional Information

Size:
5/8 in. Bore
Size:
3/4-16 Thread
Style:
LH/RH
Style:
Male
Style:
Rod End Kit
Material:
4130
