FK Rod Ends

1/4-28 Thread RH Female Mild Steel FK Studded Rod End

(No reviews yet) Write a Review
SKU:
FKB-CF4Y

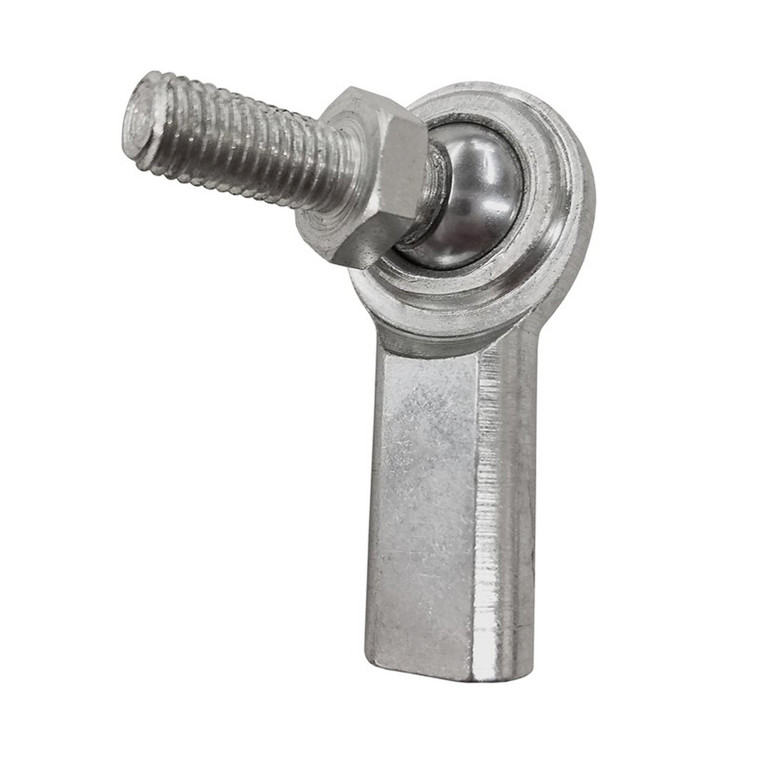

  • FK Rod Ends 1/4-28 Thread RH Female Mild Steel FK Studded Rod End
  • FK Rod End Diagram
$4.99

Description

CF4Y, Female Rod End

Body - Low carbon steel, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Stud - Low carbon steel, zinc plated

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Female
• T - Head Width: .250 in.
• A - Base to Center: 1.312 in.
• D - Head Diameter: .750 in.
• C - Thread Length: .687 in.
• L - Length: 1.031 in.
• S - Length: .500 in.
• P - Length: .562 in.
• E - Base Diameter: .468 in.
• F - Flat: .375 in.
• Thread Size: 1/4-28
• a° Misalignment Angle: 40 degree
• Approximate Bearing Weight: .06 lbs

View AllClose

Additional Information

Size:
1/4-28 Thread
Style:
RH
Style:
Female
Style:
Studded Rod End
Material:
Mild Steel
