FK Rod Ends

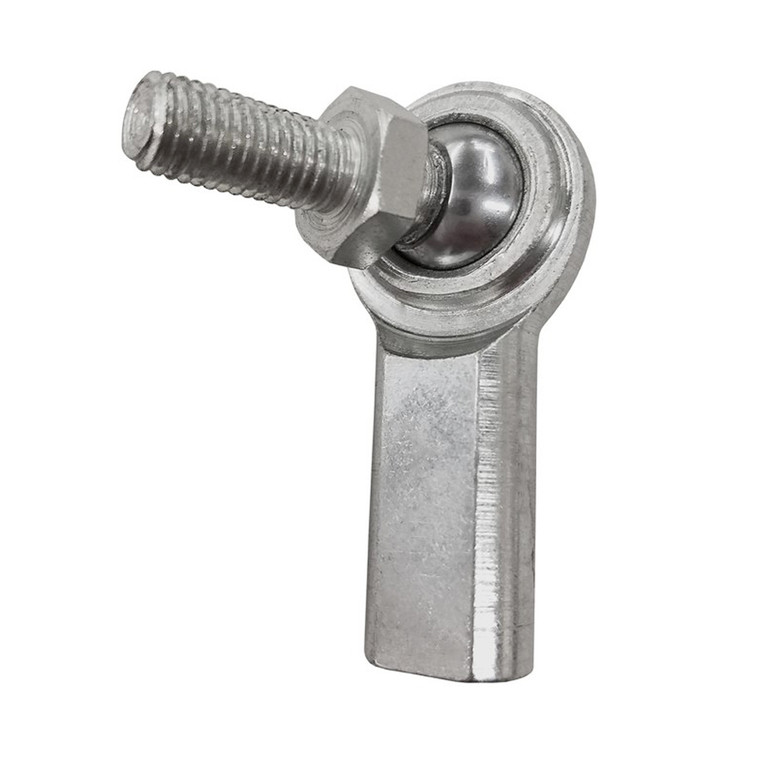

10-32 Thread RH Female Mild Steel FK Studded Rod End

(No reviews yet) Write a Review
SKU:
FKB-CF3Y
  • FK Rod Ends 10-32 Thread RH Female Mild Steel FK Studded Rod End
  • FK Rod End Diagram
$5.99

Description

CF3Y, Female Studded Rod End

Body - Low carbon steel, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Stud - Low carbon steel, zinc plated

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Female
• T - Head Width: .234 in.
• A - Base to Center: 1.062 in.
• D - Head Diameter: .625 in.
• C - Thread Length: .500 in.
• L - Length: 1.016 in.
• S - Length: .437 in.
• P - Length: .500 in.
• E - Base Diameter: .406 in.
• F - Flat: .312 in.
• Thread Size: 10-32
• a° Misalignment Angle: 45 degree
• Approximate Bearing Weight: .05 lbs

View AllClose

Additional Information

Size:
10-32 Thread
Style:
RH
Style:
Female
Style:
Studded Rod End
Material:
Mild Steel
