Description
CW-6S, Female Rod End with Stud, General Purpose - Economy
Body - Low carbon steel, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.
Stud - Low carbon steel, protective coated for corrosion resistance. Right hand thread standard.
Specifications:
• Thread Type: Right Hand
• Thread Configuration: Female

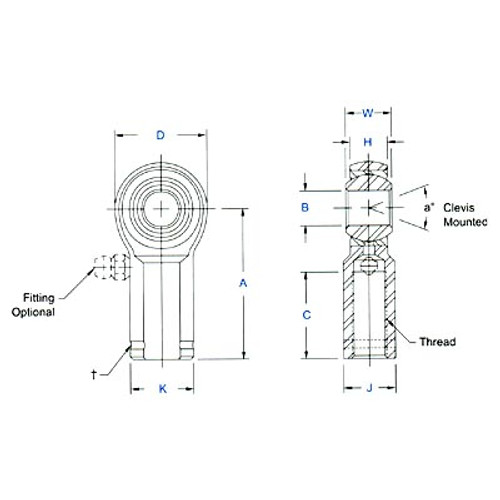

• H - Head Width: .359 in.
• A - Base to Center: 1.625 in.
• D - Head Diameter: 1.000 in.
• K - Shank Diameter: .687 in.
• J - Wrench Flat Width: .562 in.
• Ball Diameter: .719 in.
• C - Thread Length: .812 in.
• L - Center to End of Stud: 1.562 in.
• N - Stud Shank Length: .906 in.
• M - Stud Thread Length: .812 in.
• Thread Size: 3/8-24
• Thread Class: UNF-2B
• Thread Class Stud: UNF-2A
• Hex Stud: .500 in.
• a Misalignment Angle: 45 degree
• Ultimate Radial Static Load Capacity: 1,014 lbs
• Approximate Bearing Weight: 0.17 lb
DEEP DISCOUNT ON IN STOCK INVENTORY ONLY!
LIMITED QUANTITIES AVAILABLE - ONCE THEY ARE GONE - THE DISCOUNT IS GONE TOO!
All clearance item sales are final. Non-returnable.
Additional Information
Size: |
3/8-24 Thread |
Style: |
RH |
Style: |
Female |
Style: |
Rod End |
Material: |
Mild Steel |
