5/8 in. Bore x 3/4-16 Thread 4130 Rod End Kit

4130 Rod End Kit

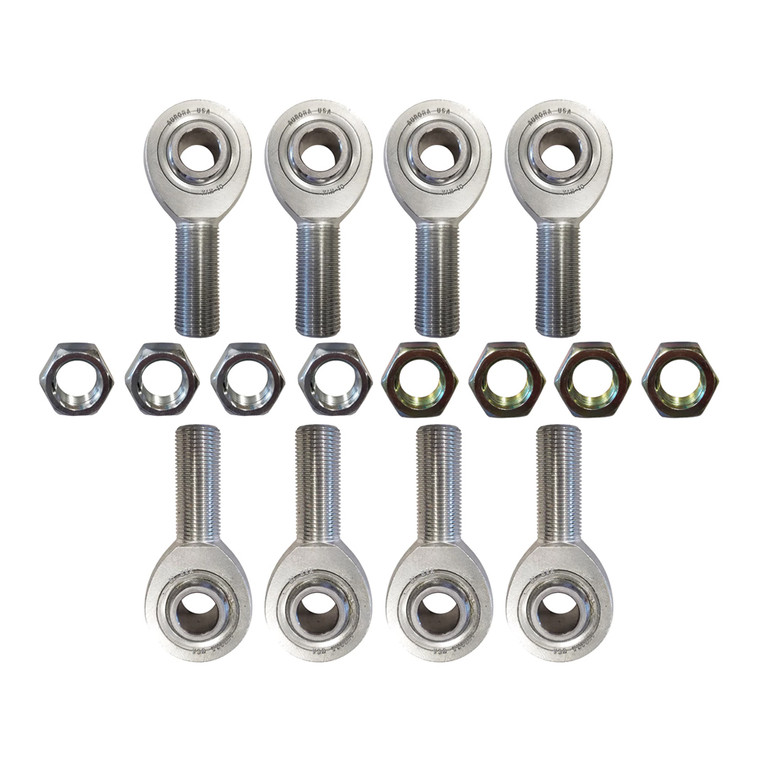

Kit includes:
• (4) AUR-XAB-10 - 5/8 in. Bore x 3/4-16 Thread LH Male 4130 Rod Ends
• (4) AUR-XAM-10 - 5/8 in. Bore x 3/4-16 Thread RH Male 4130 Rod Ends
• (4) AUR-JNL-1216 - 3/4-16 Thread LH Jam Nuts
• (4) AUR-JNR-1216 - 3/4-16 Thread RH Jam Nuts

XAB-10/XAM-10 Specifications:
• Thread Type: Left/Right Hand
• Thread Configuration: Male
• B - Ball Bore: .6250 in.
• W - Ball Width: .750 in.
• H - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• Thread Class: UNF-3A
• a Misalignment Angle Clevis Mounted: 13 degree
• Ultimate Radial Static Load Capacity: 40,572 lbs
• Approximate Bearing Weight: 0.602 lb

JNL-1216/JNR-1216 Specifications:
• Thread: .7500-16
• F Ref: .1.125 in.
• G Ref: 1.299 in.
• H Ref: .422 in.
