5/8 in. Bore x 3/4-16 Thread LH Male 4130 FK Rod End

RSMXL10, Male Rod End

Body - Steel alloy, heat treated, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Race - Steel alloy, heat teated, zinc plated, chromate treated

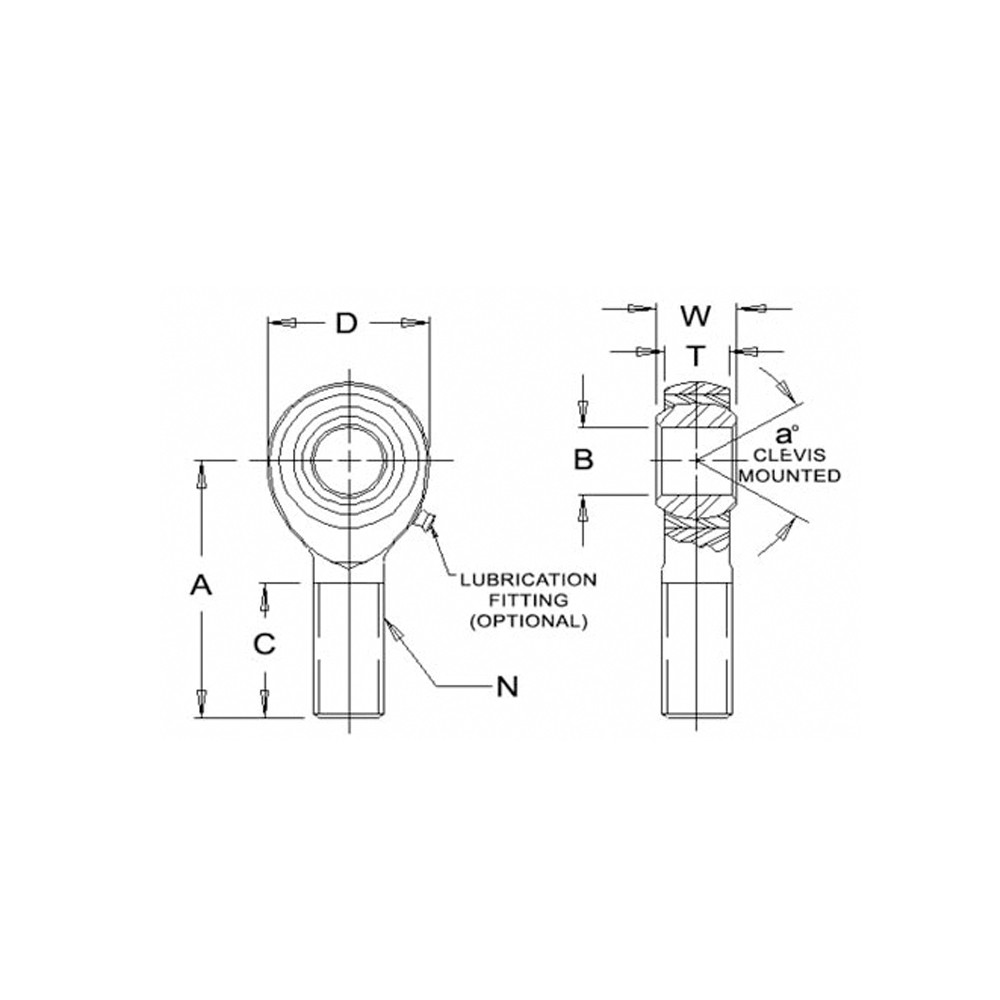

Specifications:
• Thread Type: Left Hand
• Thread Configuration: Male
• B - Ball Bore: .6250 in.
• W - Ball Width: .750 in.
• T - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• a° Misalignment Angle: 13 degree
• Ultimate Radical Static Load Capacity: 40,590 lbs
• Approximate Bearing Weight: .602 lbs
