FK Rod Ends

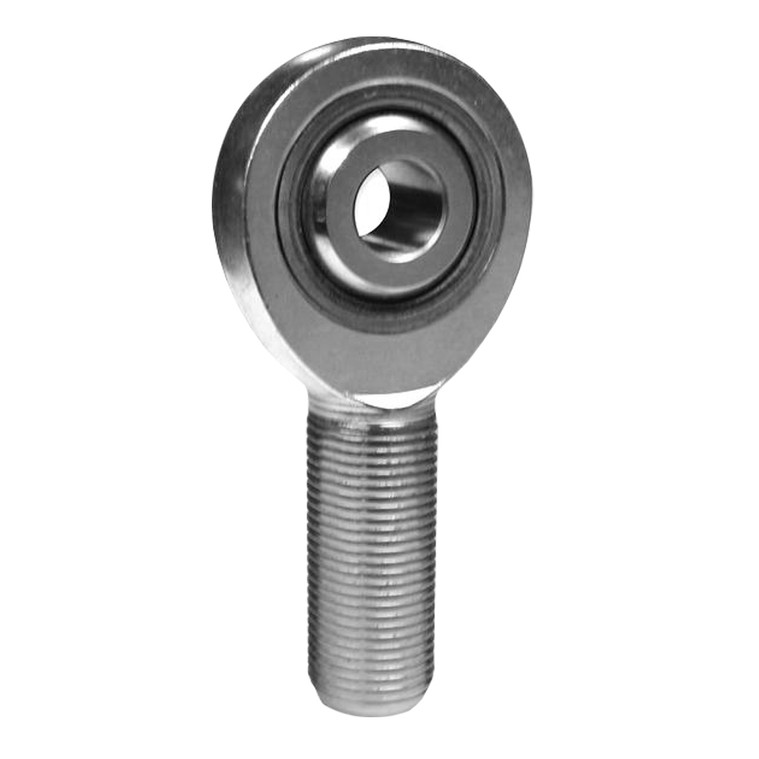

5/8 in. Bore x 3/4-16 Thread RH Male 4130 FK Rod End

(No reviews yet) Write a Review
SKU:
FKB-RSMX10
  • FK Rod Ends 5/8 in. Bore x 3/4-16 Thread RH Male 4130 FK Rod End
  • FK Rod End Diagram
$40.99

Description

RSMX10, Male Rod End

Body - Steel alloy, heat treated, zinc plated, chromate treated
Ball - 52100 steel, rc 56 min, hard chrome plated
Race - Steel alloy, heat teated, zinc plated, chromate treated

Specifications:
• Thread Type: Right Hand
• Thread Configuration: Male
• B - Ball Bore: .6250 in.
• W - Ball Width: .750 in.
• T - Head Width: .562 in.
• A - Base to Center: 2.875 in.
• D - Head Diameter: 1.750 in.
• Ball Diameter: 1.125 in.
• C - Thread Length: 1.750 in.
• Thread Size: 3/4-16
• a° Misalignment Angle: 13 degree
• Ultimate Radical Static Load Capacity: 40,590 lbs
• Approximate Bearing Weight: .602 lbs

View AllClose

Additional Information

Size:
5/8 in. Bore
Size:
3/4-16 Thread
Style:
RH
Style:
Male
Style:
Rod End
Material:
4130
