Description
The Power Grid Ignition Control is specially designed to mount to the MSD-7730 Power Grid System Controller Box.
Specifications:
• Current Draw: 1.3 Amp per 1,000 RPM
• Primary Voltage: 545-570 Volts
• RPM Range: 15,000 RPM with 14.4 Volts
• Secondary Voltage: 50,000 Volts
• Spark Energy: 200-220 mJ per spark
• Spark Series Duration: 20° Crankshaft Rotation
• Voltage Required: 12-18 Volts, Negative Ground
Click here to download the MSD-7720 Power Grid Ignition Control instructions.
Related Products
Related Products
Power Grid System, Controller Only
MSD
$589.95
The Power Grid Ignition System is the next evolution of our Programmable 7-Series Ignition Controls. The Grid incorporates an efficient 32 bit microcontroller and an all new software program, called...
MSD-7730

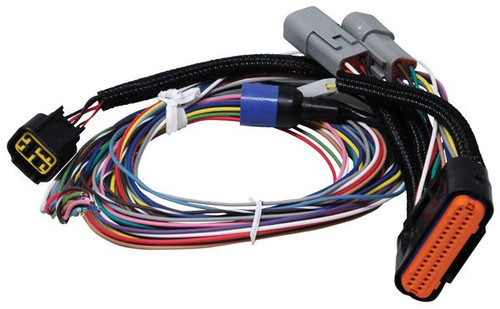

Power Grid Harness Adapter, Power Grid Controller to Digital-7 Programmable
MSD
$230.95
The Power Grid Harness Adapter allows you to use your Digital-7 Programmable to install a Power Grid Controller with very little alterations. The harnesses are direct plug-ins for existing wires, but...
MSD-7789

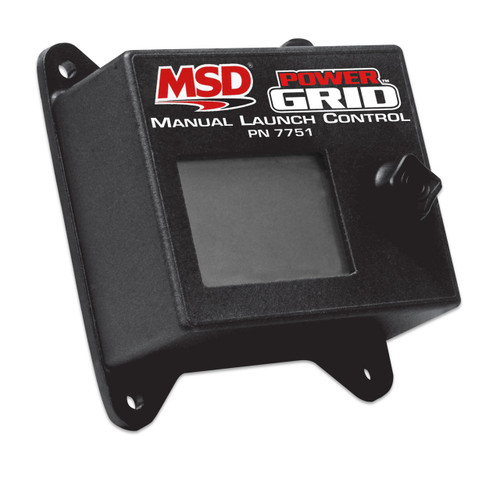

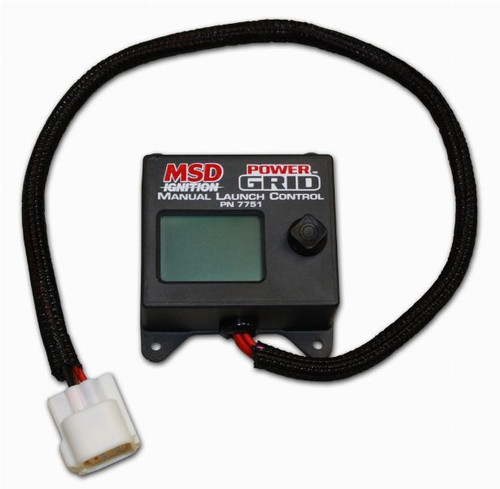

Power Grid Manual Launch Control Module
