Quarter-Max 4-Link Kit

(2 reviews) Write a Review
SKU:
RJ-30110x
  • Quarter-Max 301101-3.0 4-Link Kit with Universal Chassis Brackets & 3" Axle Tube Hole Size Housing Brackets
  • Quarter-Max 301101-3.25 4-Link Kit with Universal Chassis Brackets & 3-1/4" Axle Tube Hole Size Housing Brackets
  • Quarter-Max 301101-3.5 4-Link Kit with Universal Chassis Brackets & 3-1/2" Axle Tube Hole Size Housing Brackets
  • Quarter-Max 301103-3.0 4-Link Kit with 2" x 3" Chassis Brackets & 3" Axle Tube Hole Size Housing Brackets
  • Quarter-Max 301103-3.25 4-Link Kit with 2" x 3" Chassis Brackets & 3-1/4" Axle Tube Hole Size Housing Brackets
  • Quarter-Max 301103-3.5 4-Link Kit with 2" x 3" Chassis Brackets & 3-1/2" Axle Tube Hole Size Housing Brackets
$292.99 - $391.49

Description

The Quarter-Max 4-Link Kit can be used in most sportsman and street/strip applications.

This kit features our high quality 1-1/4" .095" 4130 Pro Series 4-link bars. This is a stronger upgrade that comes standard in our kits, vs most kits on the market that only have 1" direct tap tubes.

The Quarter-Max line of chassis and housing brackets feature a 1" hole spacing. Our brackets are manufactured in-house to high quality specifications with precise hole locations and smooth profiles.

Chassis brackets are available in 3/16" thick mild steel or 4130. Select your desired style of universal or 2" x 3" (available in mild steel only).

Housing brackets are available in 3/16" thick mild steel or 4130 with a 3", 3-1/4", or 3-1/2" axle tube hole size.

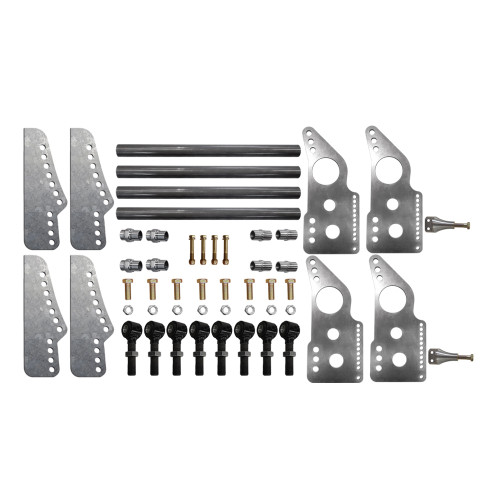

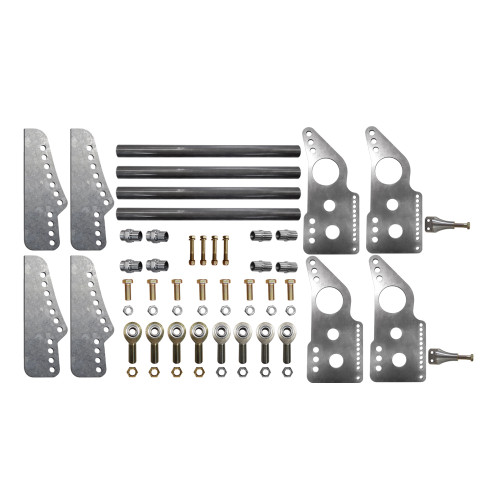

Kit includes:

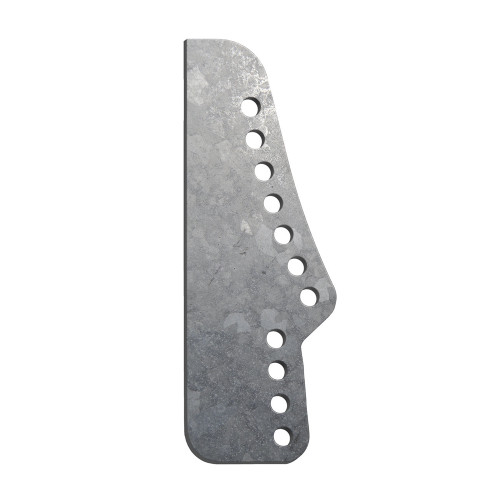

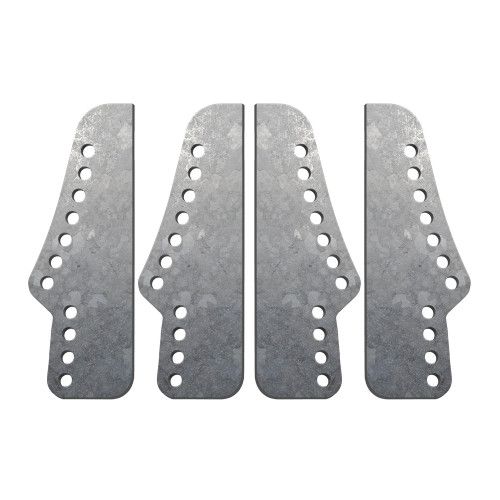

• (4) Quarter-Max chassis 4-link brackets

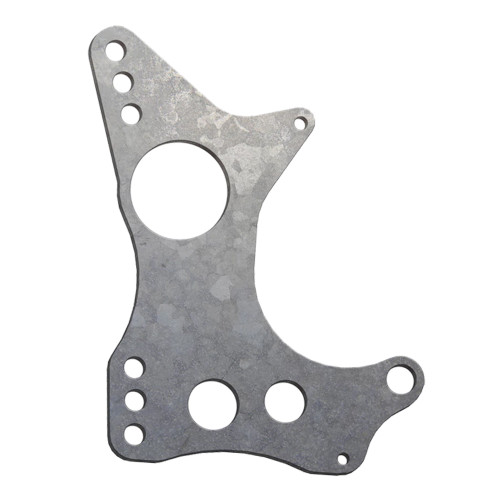

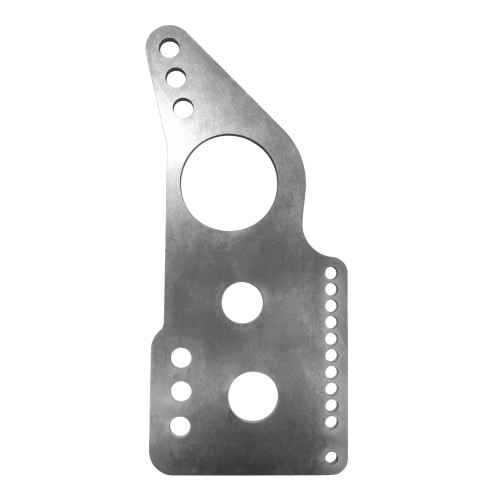

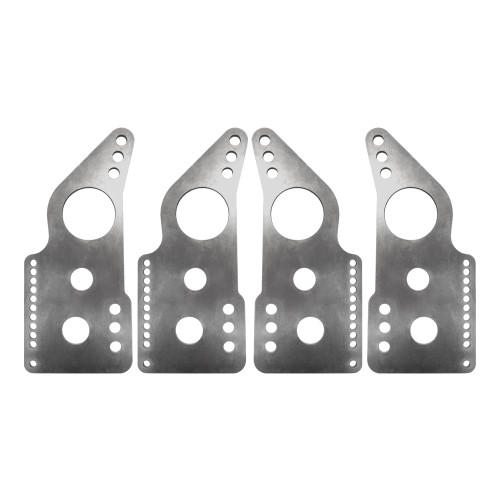

• (4) Quarter-Max housing 4-link brackets
• (4) 1-1/4" .095" 4130 Pro Series 4-link bars
• (4) 3/4"-16 LH tube adapters
• (4) 3/4"-16 RH tube adapters
• (2) Quarter-Max threaded shock mounts
• 5/8" grade 8 hardware.

During installation while mocking up and welding, we recommend the use of grade 8 bolts with our 4-link jigs to hold the brackets together in the correct position. After all the welding is complete, we recommend reaming the holes using our 7 piece chucking reamer kit #RJ-219850 and upgrading to our NAS 4-link bolt kit during final assembly for a tight fitment and even less bolt movement. Do not use a drill bit!

Rod end kits are sold separately (requires the use of 5/8" bore x 3/4"-16 thread male rod end).

View AllClose

2 Reviews

  • 5
    QUARTER-MAX 4-LINK KIT

    Posted by BT on Mar 23rd 2020

    Excellent quality and fit! Super precise! Only downside, the box could have used tape across the whole seam. Our delivery people here are a bit rough!

  • 4
    Nice finish and fit.

    Posted by Unknown on Mar 13th 2019

    No instruction tips for installation on housing.
