  • Aurora Bearing 1/2" Bore x 1/2"-20 Thread RH Female 4130 Rod End
  • Aurora Bearing 1/2" Bore x 1/2"-20 Thread RH Female 4130 Rod End

1/2" Bore x 1/2"-20 Thread RH Female 4130 Rod End

SKU:
AUR-AW-8
$32.99
Quantity:

Product Description

AW-8, Female Rod End, High Strength Alloy - Precision

Body - Alloy Steel, heat treated, protective coated for corrosion resistance.
Race - Alloy steel, heat treated, protective coated for corrosion resistance.
Ball - Alloy steel, heat treated, hard chrome plated.

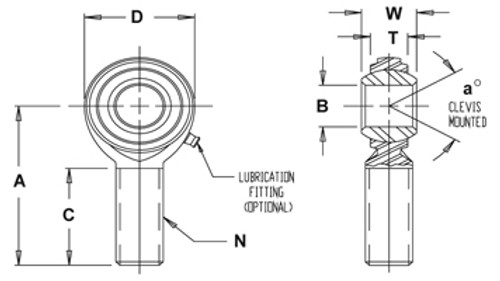

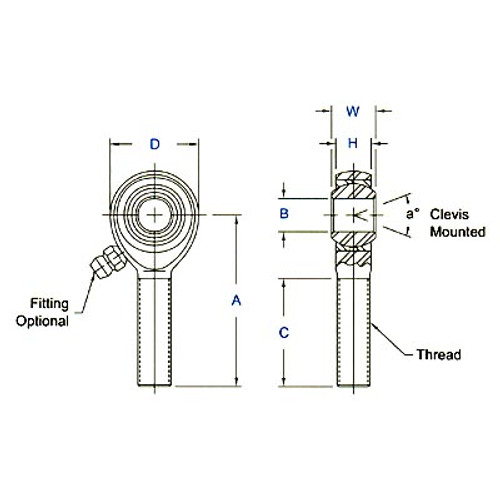

Specifications
• Thread Type: Right Hand
• Thread Configuration: Female
• B - Ball Bore: .5000"
• W - Ball Width: .625"
• H - Head Width: .500"
• A - Base to Center: 2.125"
• D - Head Diameter: 1.312"
• K - Shank Diameter: .875"
• J - Wrench Flat Width: .750"
• Ball Diameter: .937"
• C - Thread Length: 1.187"
• Thread Size: 1/2"-20
• Thread Class: UNF-3B
• a° Misalignment Angle: 12°
• Ultimate Radial Static Load Capacity: 16,238 lbs
• Approximate Bearing Weight: 0.33 lbs
